2322946-1 - TE Connectivity

Description: Horizontal, Wire-to-Board, 6 Position, 1 Rows, 6.35mm [.25in] Centerline, Tin (Sn), Printed Circuit Board, 1A Contact Current Rating (Max), Signal

Download 2322946-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2322946-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

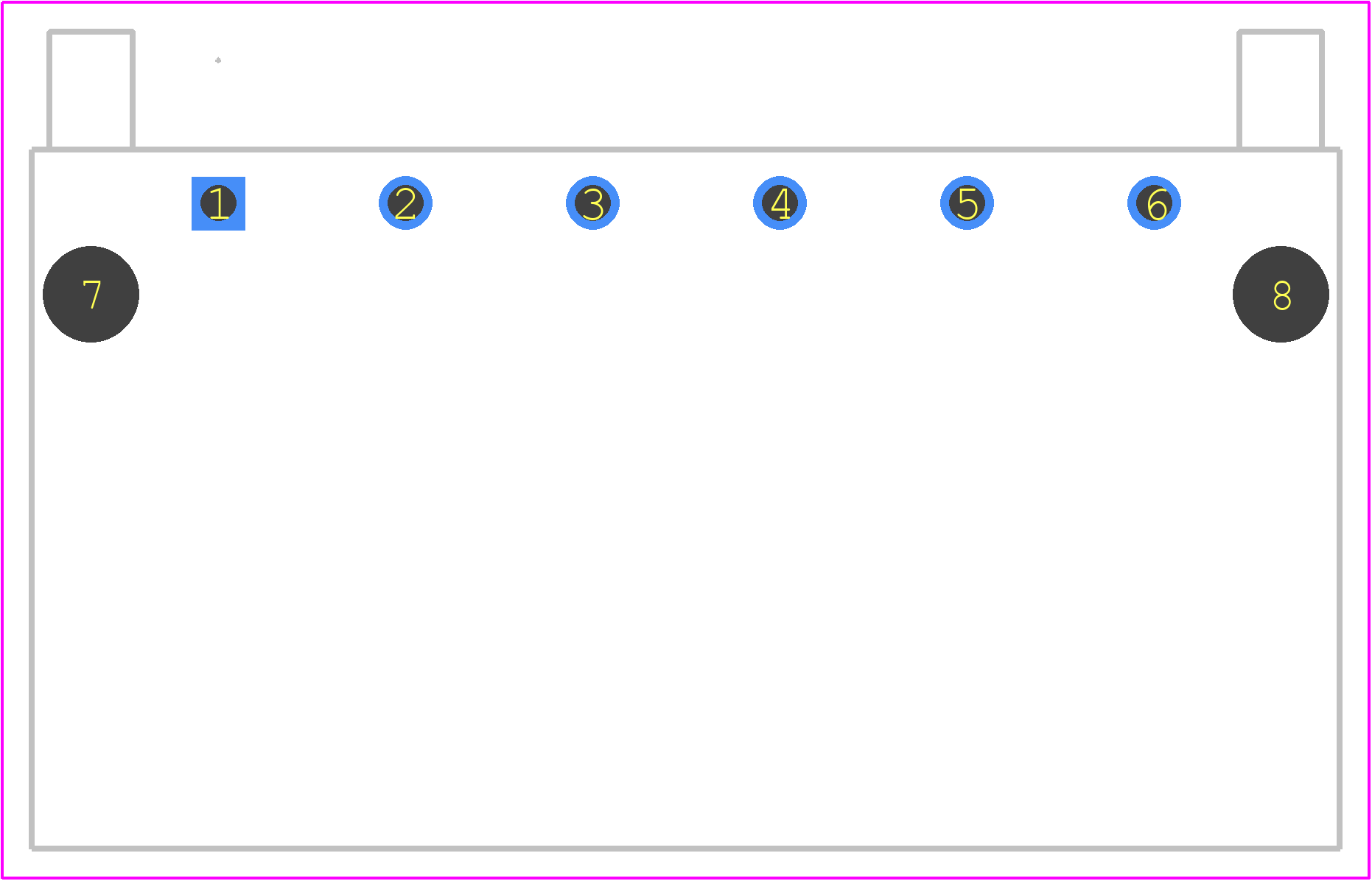

2322946-1 - TE Connectivity PCB footprint - Other - Other - 2322946-1-2
click to zoom
3D Models
2322946-1 - TE Connectivity - 3D model - Other - 2322946-1-2
click to zoom

2322946-1 Details

  • Manufacturer Part Number:

    2322946-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.4

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    6.35 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

2322946-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2322946-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The 2322946-1 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's essential to follow proper installation and sealing guidelines to ensure optimal performance.
  • The maximum current rating for each contact is 3.5 A, but it's essential to consider the overall system design, wire gauge, and operating conditions to ensure safe and reliable operation.
  • The 2322946-1 connector is suitable for both power and signal transmission applications, thanks to its hybrid design, which accommodates both power and signal contacts.
