233-106 - Wago

Description: PCB terminal block; 0.5 mm²; Pin spacing 2.5 mm; 6-pole; CAGE CLAMP®

Download 233-106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

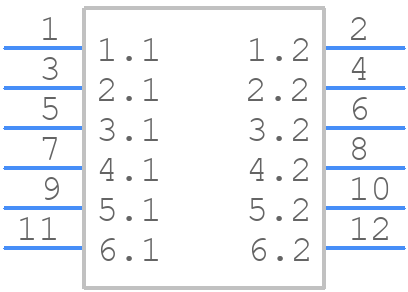

233-106 - Wago - PCB symbol
click to zoom
PCB Footprints

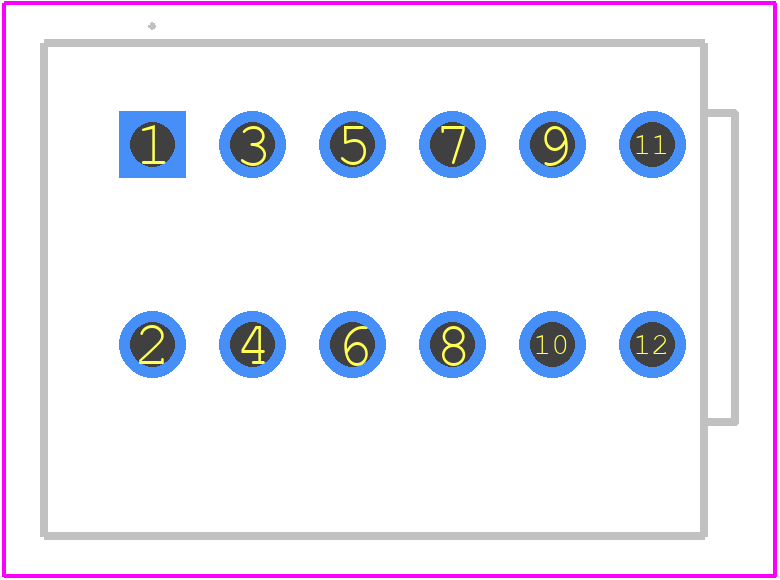

233-106 - Wago PCB footprint - Other - Other - 233-106-1
click to zoom
3D Models
233-106 - Wago - 3D model - Other - 233-106-1
click to zoom

233-106 Details

  • Manufacturer Part Number:

    233-106

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

233-106 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 233-106 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 233-106 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 1, Class B.
  • Yes, the 233-106 connector is rated IP67 and can be used in outdoor or harsh environmental applications, but it's essential to follow proper installation and sealing guidelines.
  • The 233-106 connector is designed for use with wire sizes from 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
  • Yes, the 233-106 connector is part of the WAGO TOPJOB S series and is compatible with other connectors in this series, but it's essential to verify compatibility before use.
