233-410 - Wago

Description: PCB terminal block; 0.5 mm²; Pin spacing 2.54 mm; 10-pole; CAGE CLAMP®

Download 233-410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

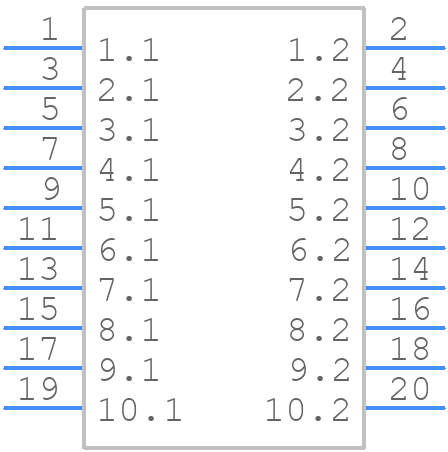

233-410 - Wago - PCB symbol
click to zoom
PCB Footprints

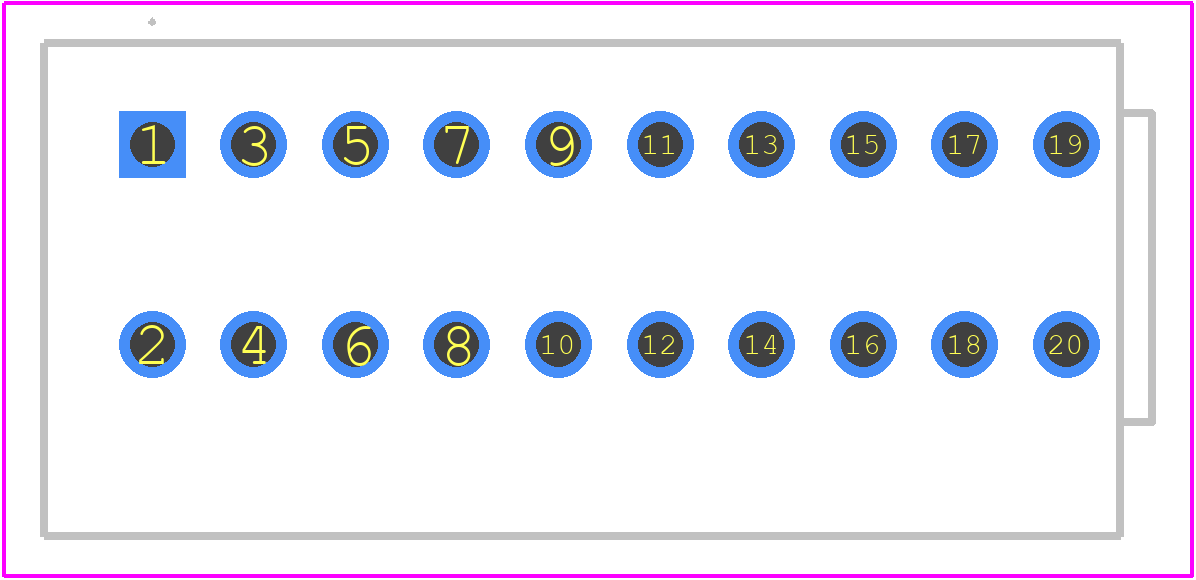

233-410 - Wago PCB footprint - Other - Other - 233-410-3
click to zoom
3D Models
233-410 - Wago - 3D model - Other - 233-410-3
click to zoom

233-410 Details

  • Manufacturer Part Number:

    233-410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

233-410 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 233-410 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 233-410 connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range of the 233-410 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 233-410 connector is designed to accept stranded wire, but it's recommended to use a ferrule or wire end sleeve to ensure a secure connection.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

233-410 Overview

Use the download button to access the 233-410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 233-4, or try a keyword search, such as Terminals and Terminal Blocks
