233235-E footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

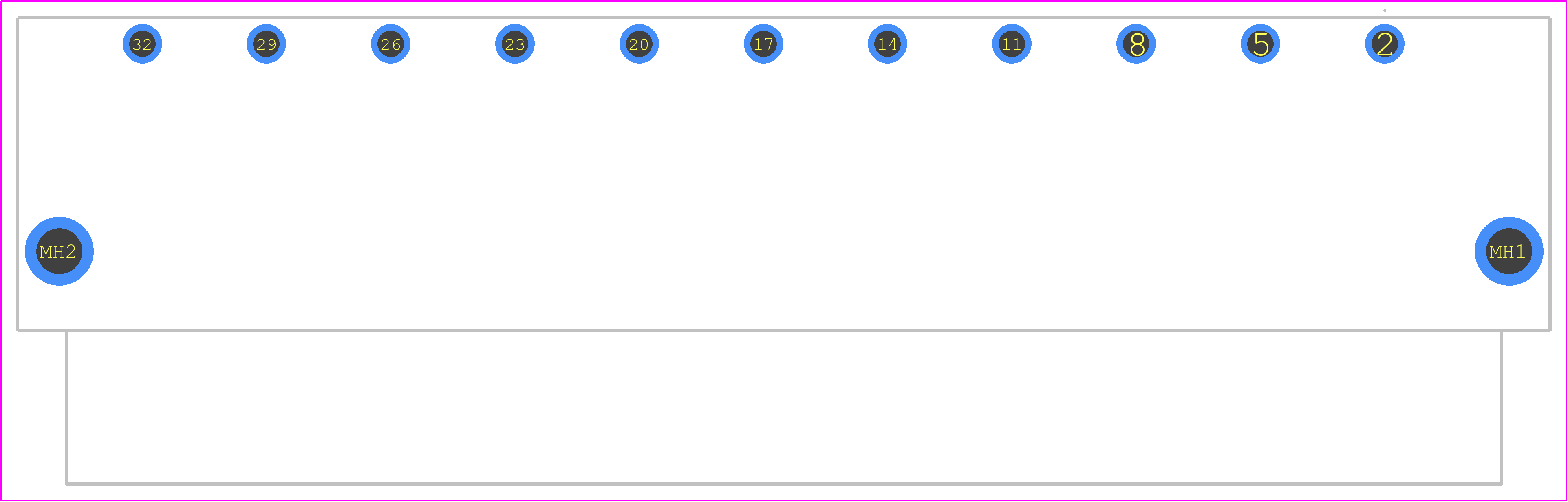

233235-E - TE Connectivity PCB footprint - Other - Other - 233235-E-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 233235-E
Part Number 233235-E
Manufacturer TE Connectivity
Pin Count 13
Part Category Connector
Package Category Other
Footprint Name Other - 233235-E-1
Released Date Jan 6, 2024
Last Modified Date Jan 6, 2024 9:24 AM UTC
Pinout / Pin List Click Here (Member Only)

233235-E Details

Manufacturer Part Number:
233235-E
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
41 Weeks, 6 Days
Manufacturer:
TE Connectivity
YTEOL:
7
Additional Feature:
STANDARDS: IEC-60603-2, DIN 41612
Board Mounting Option:
HOLE 2.8
Body Breadth:
0.343 inch
Body Depth:
1.126 inch
Body Length:
3.701 inch
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Pattern:
RECTANGULAR
Contact Resistance:
8 mΩ
Contact Style:
BLADE PIN-SKT
DIN Conformance:
YES
Dielectric Withstanding Voltage:
4400VAC V
Filter Feature:
NO
IEC Conformance:
YES
Insulation Resistance:
1000000 Ω
Insulator Material:
PC GF
MIL Conformance:
NO
Mating Contact Pitch:
0.3 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Name of Rows Loaded:
B
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
15 A
Reference Standard:
UL
Terminal Length:
0.138 inch
Terminal Pitch:
7.62 mm
Termination Type:
SOLDER
Total Number of Contacts:
11
UL Flammability Code:
94V-1

233235-E Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 233235-E connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
The 233235-E connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
The 233235-E connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you need to use the connector in environments with high humidity or exposure to chemicals, consider using additional protection measures, such as conformal coatings or sealing, and consult with TE Connectivity or a qualified engineer.
