2332793-1 - TE Connectivity

Description: 21 Position Backplane Power Connector, PCB Mount Header, Board-to-Board, Right Angle, Traditional Backplane, Printed Circuit Board, MULTIGIG RT 3

Download 2332793-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2332793-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

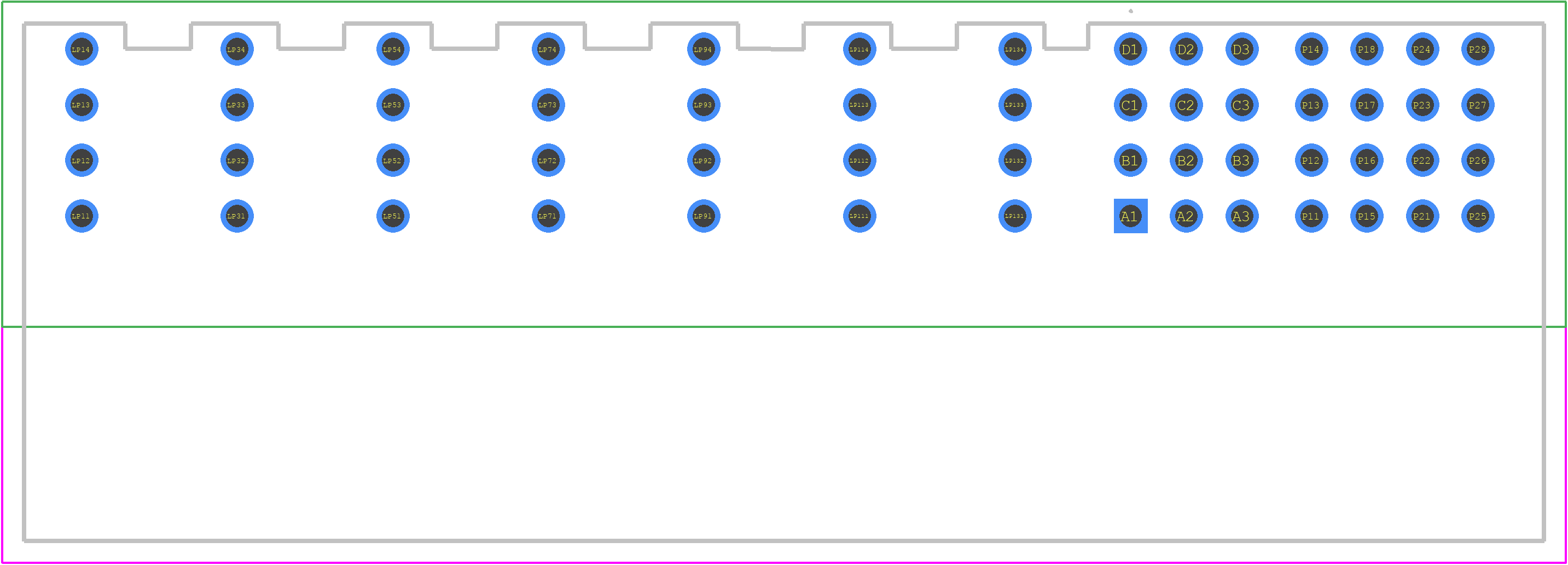

2332793-1 - TE Connectivity PCB footprint - Other - Other - 2332793-1-3
click to zoom
3D Models
2332793-1 - TE Connectivity - 3D model - Other - 2332793-1-3
click to zoom

2332793-1 Details

  • Manufacturer Part Number:

    2332793-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    2.735 inch

  • Body Depth:

    0.574 inch

  • Body Length:

    0.93 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S12P9

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    75A

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    75 A

  • Rated Voltage:

    270 V

  • Reference Standard:

    UL

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    21

  • UL Flammability Code:

    94V-0

2332793-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2332793-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2332793-1 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection against environmental factors such as UV, salt, and extreme temperatures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of alternative wire sizes.
  • The 2332793-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
