2332816-1 - TE Connectivity

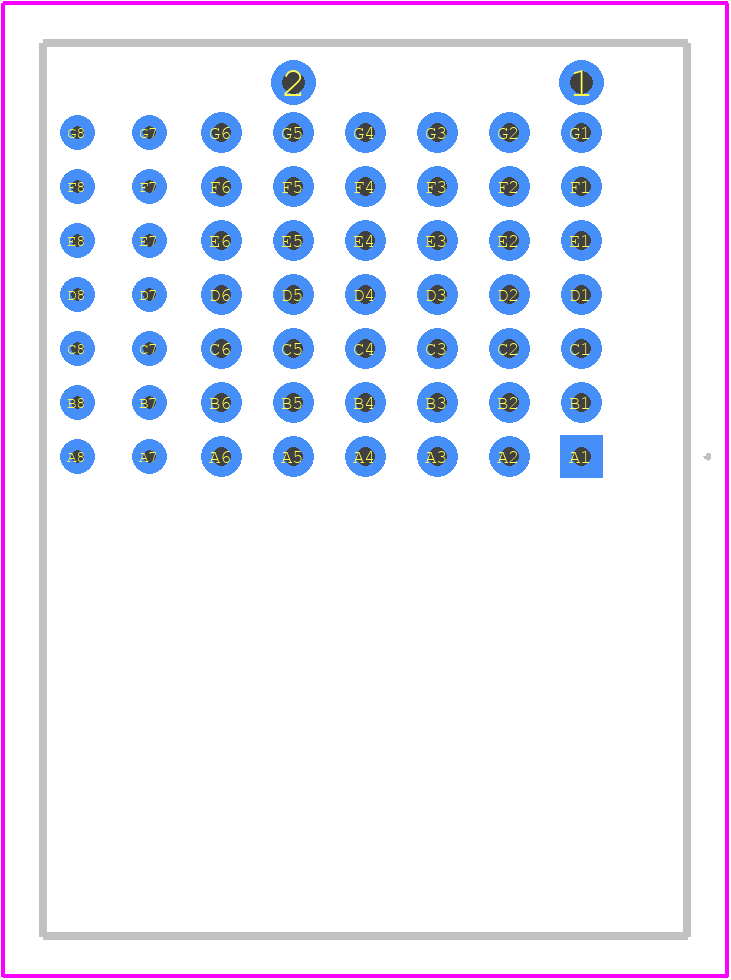

2332816-1 Details

• Manufacturer Part Number:

  2332816-1

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  20 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.8

• Board Mounting Option:

  LOCATING POSTS

• Body Breadth:

  0.724 inch

• Body Depth:

  0.878 inch

• Body Length:

  0.633 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Arrangement:

  S35P18

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  80 mΩ

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  500VAC/DC V

• Durability:

  500 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  0.75 N

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mains Connector Rating:

  115/230VAC

• Mating Contact Pitch:

  0.071 inch

• Mating Contact Row Spacing:

  0.053 inch

• Mating Information:

  2302788-1

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  7

• Number of Ports:

  1

• Number of Rows Loaded:

  7

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.35 mm

• Panel Mount:

  NO

• Plating Thickness:

  50u inch

• Polarization Key:

  2WALL SHROUD

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Terminal Length:

  0.056 inch

• Terminal Pitch:

  1.8 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  53

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.15 N
