Part Image

2337822-1 - TE Connectivity

Description: Configuration Features: Number of Loaded Positions 8 | Product Type Features: Filter Connector Type RJ45 Connector | Filter Connector Type 8-Pin Jack | Output Termination Type PCB Mount | Filtering Requirements Filtered |

Download 2337822-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

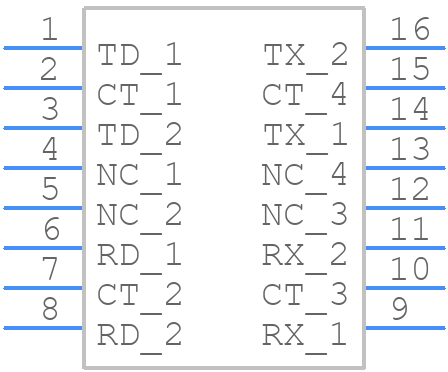

Symbol
2337822-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2337822-1 - TE Connectivity PCB footprint - Other - Other - 2337822-1-2
click to zoom
3D Models
2337822-1 - TE Connectivity - 3D model - Other - 2337822-1-2
click to zoom

2337822-1 Details

  • Manufacturer Part Number:

    2337822-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Application:

    10/100; ETHERNET

  • Height:

    6.2 mm

  • Isolation Voltage:

    1500 V

  • Length:

    12.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT

  • Width:

    8.7 mm

2337822-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2337822-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The connector's materials are resistant to corrosion and can withstand exposure to harsh chemicals, but it's recommended to consult TE Connectivity's chemical resistance guide for specific chemical compatibility.
  • The 2337822-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
  • The 2337822-1 connector is designed for moderate current applications up to 3A per contact. For high-current applications, consider using a different connector or consulting with TE Connectivity's application engineers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2337822-1 Overview

Use the download button to access the 2337822-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23378, or try a keyword search, such as Pulse/Datacom Transformers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
