2337992-4 - TE Connectivity

Description: Body Features: PCB Ground Tab Location .12 INCH | LED Color (Top Right) None | LED Color (Top Left) None | LED Color (Bottom Right) Yellow | Shield Plating Finish Matte | Connector Profile Standard | PCB Retention Feature Material LCP | Modular Jack Latch Orientation Standard - Latch Down | Insulator Material LCP | PCB Ground Tab Location 3.05 MM | Shield Material Brass | Shield Plating Material Nickel | LED Color (Bottom Left) Green | Configuration Features: PCB Mount Orientation Right Angle | Port Configu

Download 2337992-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

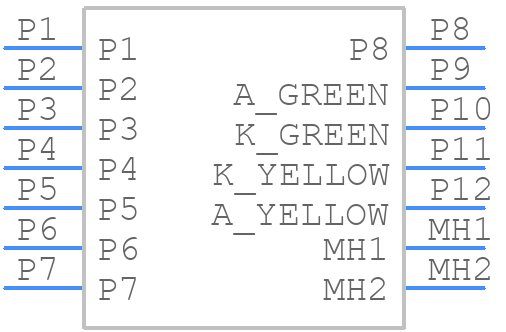

2337992-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

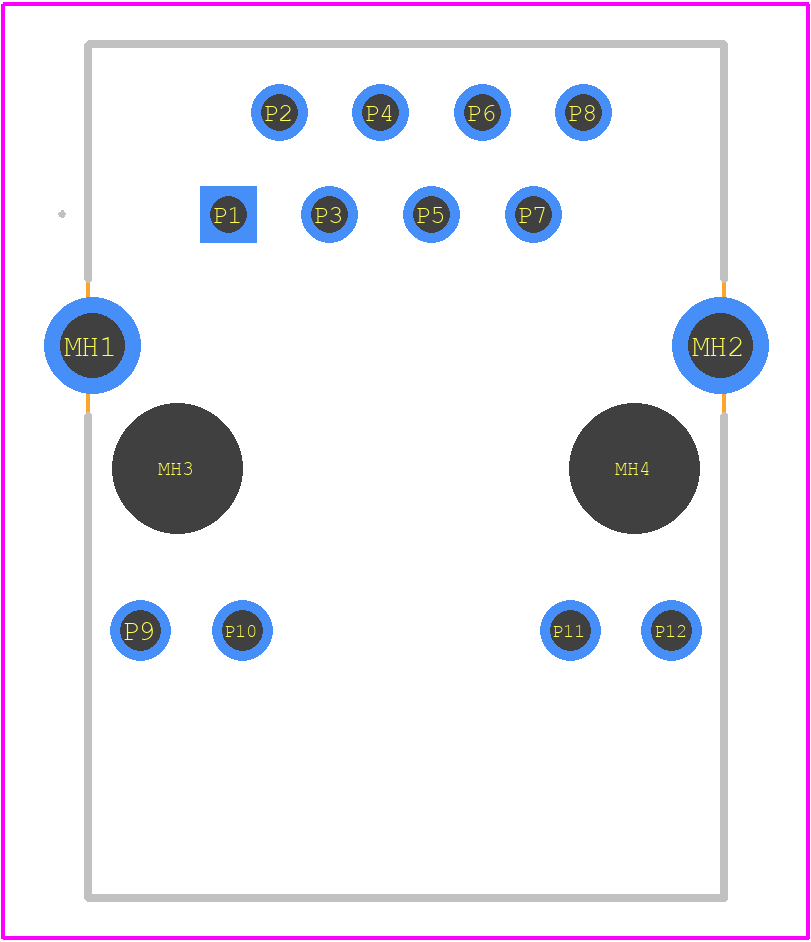

2337992-4 - TE Connectivity PCB footprint - Other - Other - 2337992-4-1
click to zoom
3D Models
2337992-4 - TE Connectivity - 3D model - Other - 2337992-4-1
click to zoom

2337992-4 Details

  • Manufacturer Part Number:

    2337992-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    0.537 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

2337992-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2337992-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The operating temperature range for the 2337992-4 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 2337992-4 connector is designed to be resistant to harsh environments. It has a IP67 rating, which means it can withstand exposure to dust, water, and other contaminants. Additionally, the connector's materials are resistant to corrosion and can withstand exposure to certain chemicals.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 2337992-4 connector. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
