2337992-5 - TE Connectivity

Description: Body Features: LED Color (Top Right) Yellow | Modular Jack Latch Orientation Inverted - Latch Up | Shield Plating Finish Matte | PCB Ground Tab Location -.12 INCH | Connector Profile Standard | PCB Ground Tab Location -3.05 MM | Insulator Material LCP | Shield Material Brass | Shield Plating Material Nickel | PCB Retention Feature Material LCP | LED Color (Top Left) Green | LED Color (Bottom Right) None | LED Color (Bottom Left) None | Configuration Features: Port Matrix Configuration 1 x 1 | Number of Load

Download 2337992-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

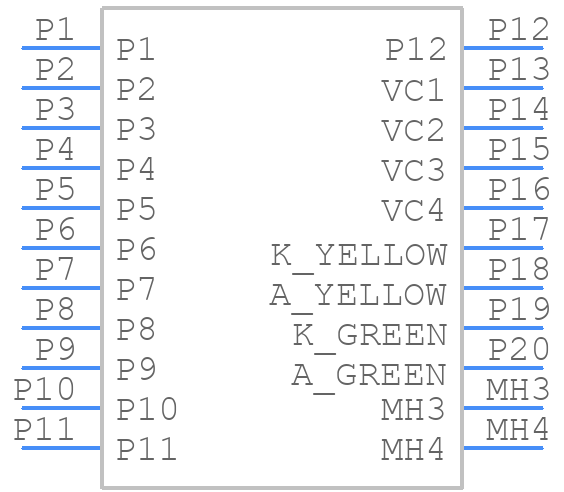

2337992-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

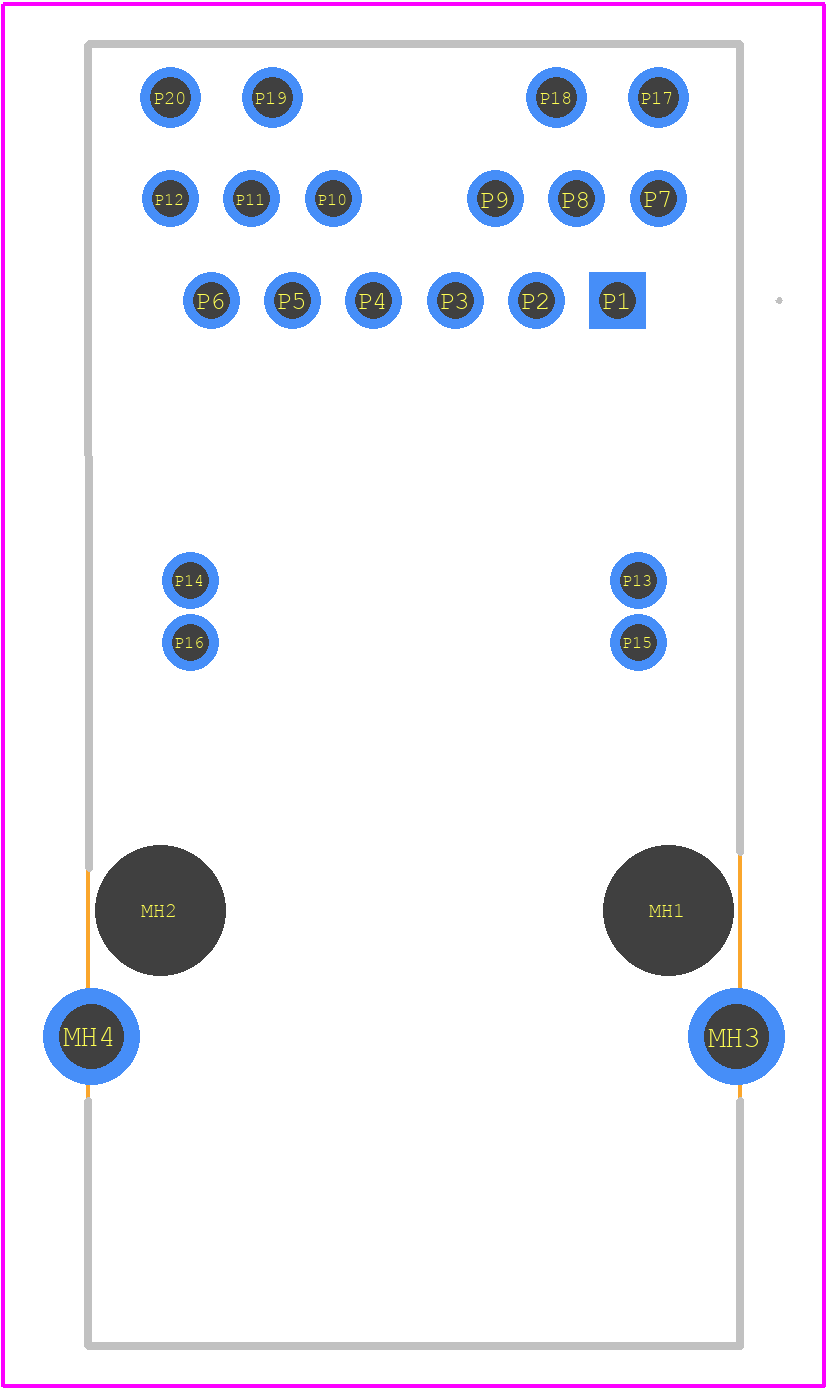

2337992-5 - TE Connectivity PCB footprint - Other - Other - 2337992-5-2
click to zoom
3D Models
2337992-5 - TE Connectivity - 3D model - Other - 2337992-5-2
click to zoom

2337992-5 Details

  • Manufacturer Part Number:

    2337992-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    0.535 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

2337992-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2337992-5 connector is designed to withstand vibrations up to 10G (sinusoidal) and 5G (random) according to IEC 61373. However, it's recommended to perform additional testing and validation for specific application requirements.
  • The 2337992-5 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's not recommended for continuous outdoor use without additional protection or sealing.
  • The 2337992-5 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • Yes, the 2337992-5 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and backshells. However, it's recommended to verify compatibility and perform testing before using the connector in a specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2337992-5 Overview

Use the download button to access the 2337992-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23379, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
