234-508 - Wago

Description: PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.54 mm; 8-pole; CAGE CLAMP®

Download 234-508 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
234-508 - Wago - PCB symbol
click to zoom

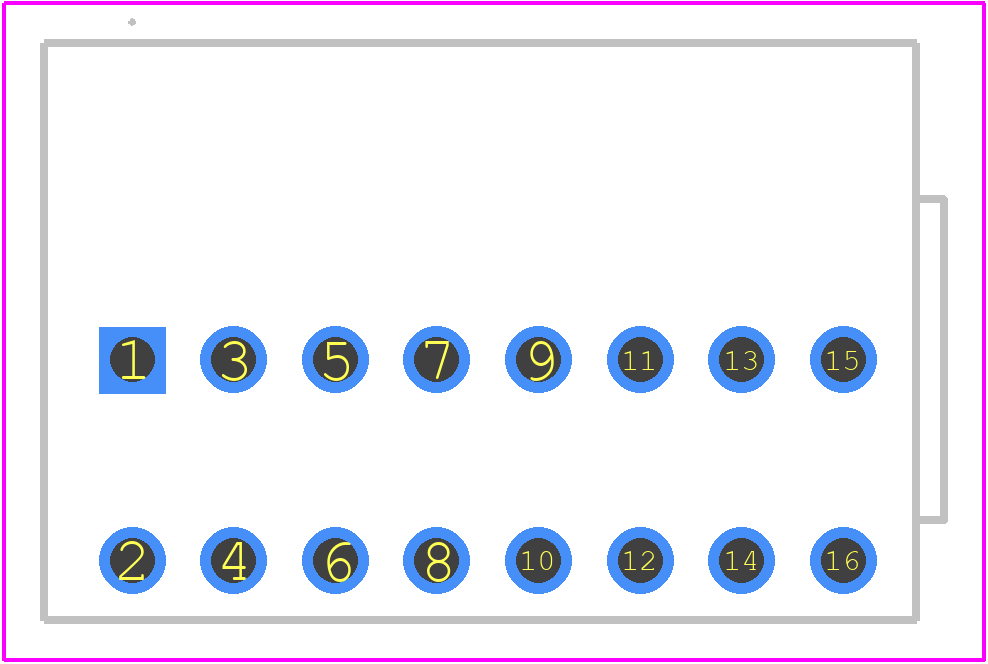

PCB Footprints
234-508 - Wago PCB footprint - Other - Other - 234-508-1
click to zoom
3D Models
234-508 - Wago - 3D model - Other - 234-508-1
click to zoom

234-508 Details

  • Manufacturer Part Number:

    234-508

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.75

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

234-508 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 234-508 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the 234-508 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 234-508 connector is designed to accept stranded wire. However, it's recommended to use wires with a minimum strand count of 30 to ensure reliable connections.
  • The operating temperature range of the 234-508 connector is -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

234-508 Overview

Use the download button to access the 234-508 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 234-5, or try a keyword search, such as Terminals and Terminal Blocks
