234-510 - Wago

Description: PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.54 mm; 10-pole; CAGE CLAMP®

Download 234-510 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

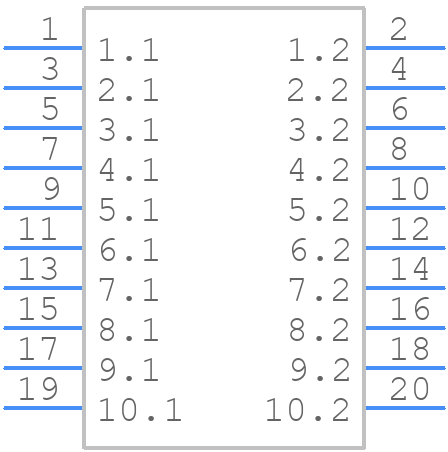

Symbol
234-510 - Wago - PCB symbol
click to zoom

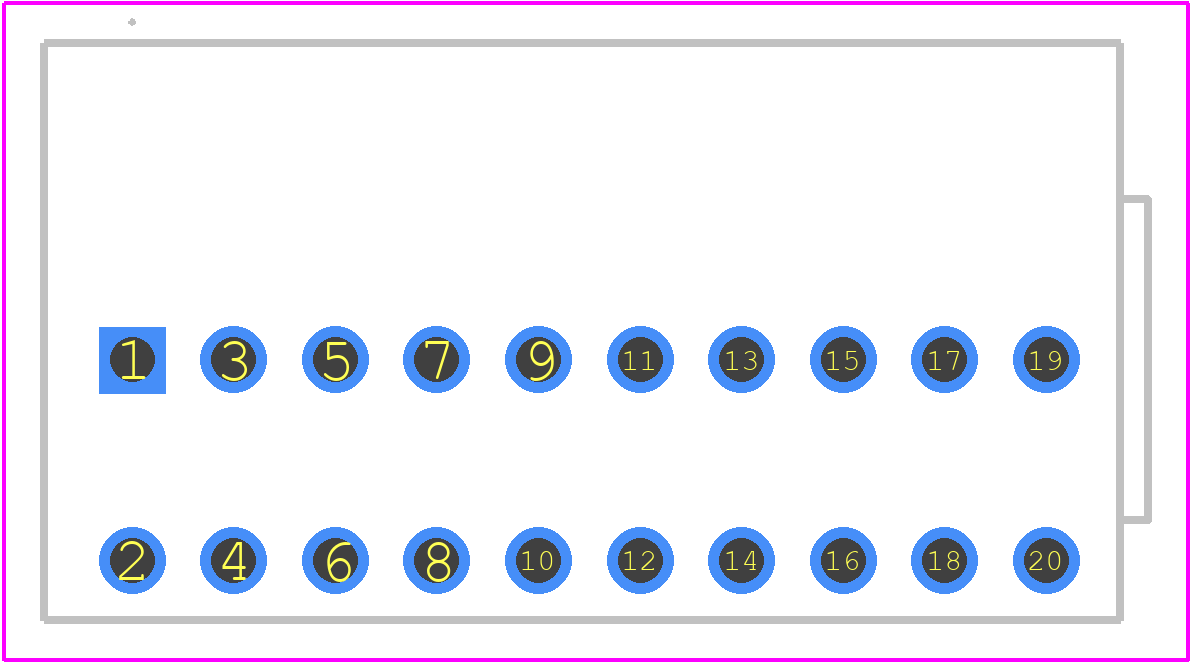

PCB Footprints
234-510 - Wago PCB footprint - Other - Other - 234-510-1
click to zoom
3D Models
234-510 - Wago - 3D model - Other - 234-510-1
click to zoom

234-510 Details

  • Manufacturer Part Number:

    234-510

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.75

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

234-510 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • No, the connector is designed for use with wire gauges 24 AWG to 20 AWG. Using a larger wire gauge may compromise the connection's reliability.
  • Yes, the WAGO 234-510 connector is designed to withstand vibrations up to 10 g and shocks up to 20 g, making it suitable for demanding industrial applications.
  • The connector is rated for operation in temperatures ranging from -40°C to 125°C. However, it's essential to ensure the connector is properly installed and secured to maintain its performance in high-temperature environments.
  • Yes, the WAGO 234-510 connector is designed for use with automated wire processing machines, making it suitable for high-volume production applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

234-510 Overview

Use the download button to access the 234-510 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 234-5, or try a keyword search, such as Terminals and Terminal Blocks
