Part Image

2340164-1 - TE Connectivity

Description: Board-to-Board Card Edge Power Connector, 52 Position, 1 mm / 5.08 mm [.039 in / .2 in] Centerline, Power & Signal, 8 Power Positions

Download 2340164-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2340164-1 - TE Connectivity - PCB symbol
click to zoom

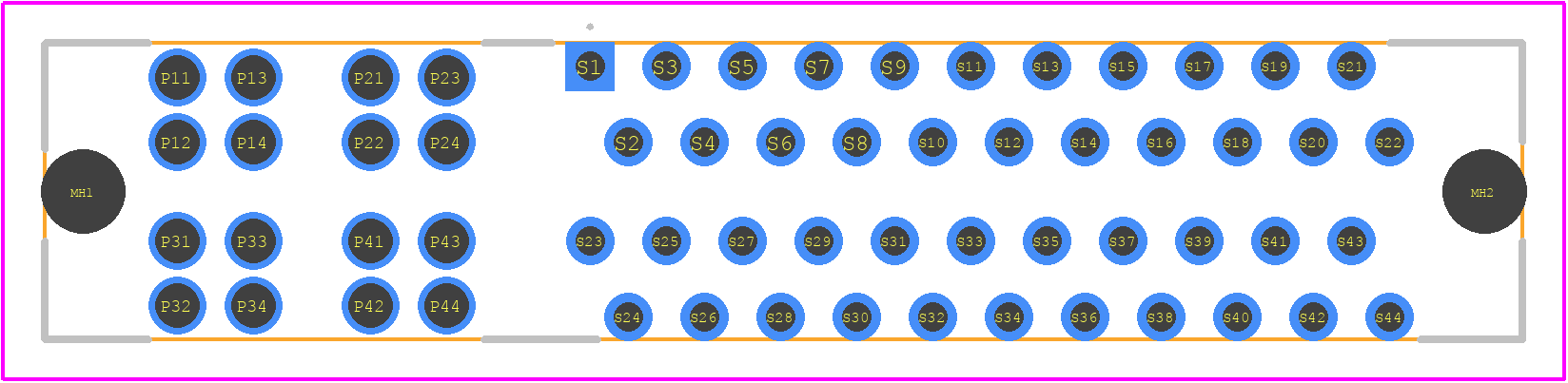

PCB Footprints
2340164-1 - TE Connectivity PCB footprint - Other - Other - 2340164-1-2
click to zoom
3D Models
2340164-1 - TE Connectivity - 3D model - Other - 2340164-1-2
click to zoom

2340164-1 Details

  • Manufacturer Part Number:

    2340164-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Arrangement:

    S44P8

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    50A

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    50 A

  • Rated Voltage:

    100 V

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    52

2340164-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2340164-1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373 Cat. 2. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2340164-1 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's essential to ensure proper sealing and protection from environmental factors like UV, salt, and extreme temperatures.
  • The 2340164-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 2340164-1 connector. However, it's crucial to ensure that the wire size is compatible with the connector's terminal size and that the wire is properly secured to prevent damage or disconnection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2340164-1 Overview

Use the download button to access the 2340164-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23401, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
