2341-12-010 - Coto Technology

2341-12-010 Details

• Manufacturer Part Number:

  2341-12-010

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.60

• Manufacturer:

  Coto Technology USA

• Body Breadth:

  5.33 mm

• Body Height:

  9.7 mm

• Body Length or Diameter:

  20.57 mm

• Coil Operate Voltage(DC):

  9 V

• Coil Release Voltage(DC):

  1 V

• Coil Resistance:

  1000 Ω

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  0.5A@200VAC

• Contact Current(AC)-Max:

  0.5 A

• Contact Current(DC)-Max:

  0.5 A

• Contact (DC) Max Power Rating R Load:

  10W@200VDC

• Contact (DC) Max Rating R Load:

  0.5A@200VDC

• Contact Voltage(AC)-Max:

  200 V

• Contact Voltage(DC)-Max:

  200 V

• Contact/Output Supply Type:

  AC/DC

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000000 Ω

• JESD-609 Code:

  e3

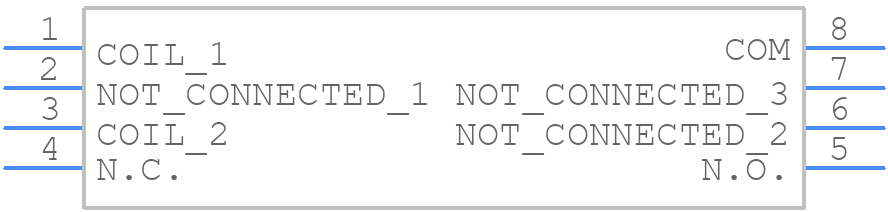

• Number of Terminals:

  8

• Operate Time:

  0.5 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Physical Dimension:

  20.57mm x 5.33mm x 9.7mm

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Release Time:

  0.5 ms

• Sealing:

  HERMETICAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Length:

  0.0034010668021336042 inch

• Termination Type:

  SOLDER
