2343246-2 - TE Connectivity

Description: Body Features: Heat Sink Height Class SAN | Heat Sink Finish Nickel | Heat Sink Style Fin | Configuration Features: Port Matrix Configuration 2 x 1 | Number of Rear EONs per Port Column 3 | Number of Ports 2 | Number of Positions 76 | Contact Features: PCB Contact Termination Area Plating Material Gold | Electrical Characteristics: Data Rate (Max) 56 GBS | Housing Features: Cage Material Stainless Steel | Centerline (Pitch) .8 MM | Operation/Application: Circuit Application High Speed Data | Pluggable I/O A

Download 2343246-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2343246-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

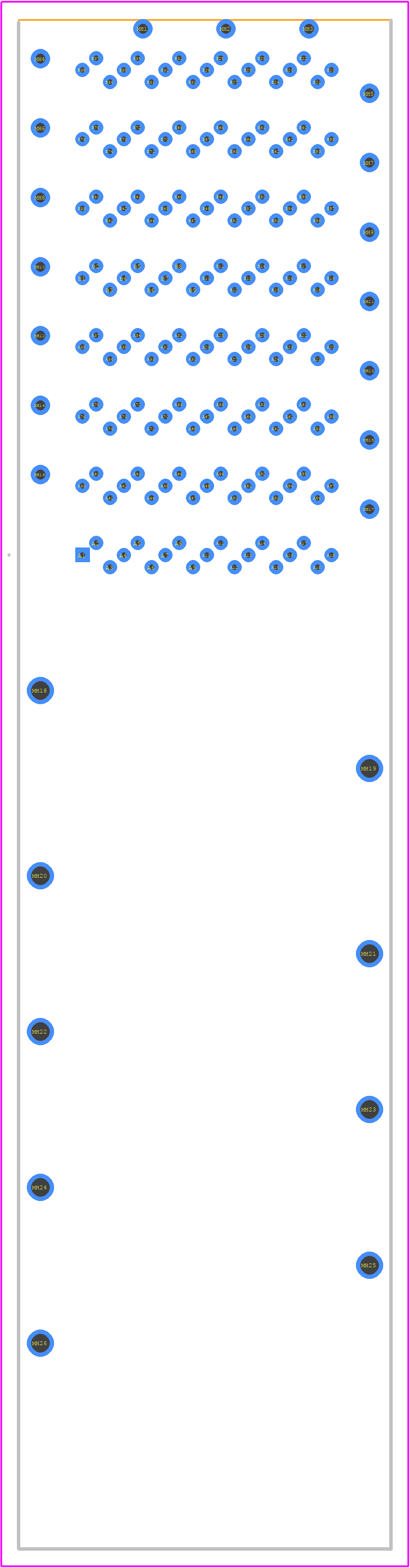

2343246-2 - TE Connectivity PCB footprint - Other - Other - 2343246-2-3
click to zoom
3D Models
2343246-2 - TE Connectivity - 3D model - Other - 2343246-2-3
click to zoom

2343246-2 Details

  • Manufacturer Part Number:

    2343246-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    RECTANGULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    76

2343246-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). This information can be found in the TE Connectivity application notes or by contacting their technical support.
  • Yes, the 2343246-2 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's recommended to consult with TE Connectivity's technical support for specific application requirements.
  • The 2343246-2 connector has a rating of IP67, which means it's protected against dust and temporary immersion in water. However, it's not designed for continuous outdoor exposure. For outdoor use, consider using a connector with a higher IP rating or additional environmental protection.
  • The operating temperature range for the 2343246-2 connector is -40°C to 125°C (-40°F to 257°F). This information can be found in the datasheet, but it's essential to note that the connector's performance may degrade at extreme temperatures.
  • While it's possible to use a different wire gauge, it's not recommended. The 2343246-2 connector is designed to work with specific wire gauges (22-18 AWG) for optimal performance and reliability. Using a different gauge may compromise the connector's performance or even cause damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2343246-2 Overview

Use the download button to access the 2343246-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23432, or try a keyword search, such as Other Rectangular Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
