2343428-1 - TE Connectivity

Description: Board-to-Board Card Edge Power Connector, 26 Position, 7.62 mm [.3 in] Centerline, Power & Signal, 12 Power Positions, 14 Signal Positions

Download 2343428-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2343428-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

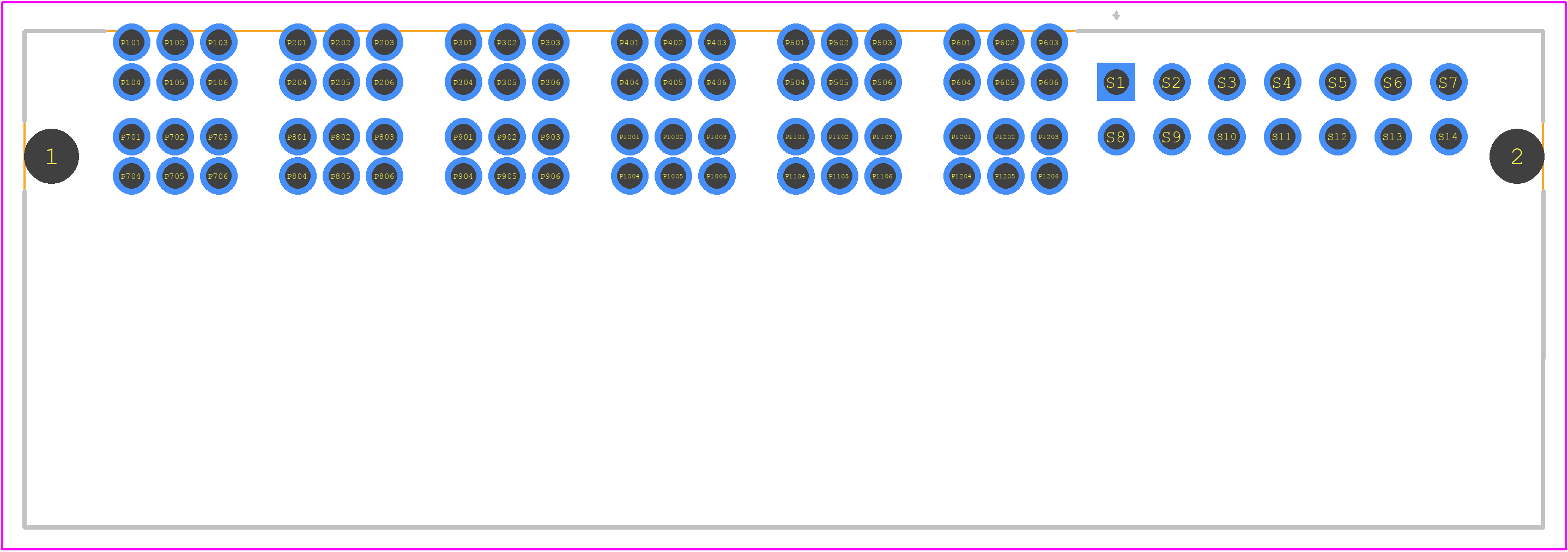

2343428-1 - TE Connectivity PCB footprint - Other - Other - 2343428-1-2
click to zoom
3D Models
2343428-1 - TE Connectivity - 3D model - Other - 2343428-1-2
click to zoom

2343428-1 Details

  • Manufacturer Part Number:

    2343428-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 7.62 MM

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Arrangement:

    S14P12

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    41A

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    41 A

  • Rated Voltage:

    100 V

  • Terminal Pitch:

    7.62 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

2343428-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 2343428-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2343428-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 2343428-1 connector has a IP67 rating, making it suitable for use in harsh environments. However, it's crucial to ensure proper sealing and protection to maintain the IP rating. Consult TE Connectivity's environmental testing data and application notes for more information.
  • The recommended wire size for the 2343428-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a suitable insulation material and temperature rating to ensure reliable connections. Consult TE Connectivity's application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2343428-1 Overview

Use the download button to access the 2343428-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23434, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
