235-105 - Wago

Description: PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.81 mm; 5-pole; Push-in CAGE CLAMP®

Download 235-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
235-105 - Wago - PCB symbol
click to zoom

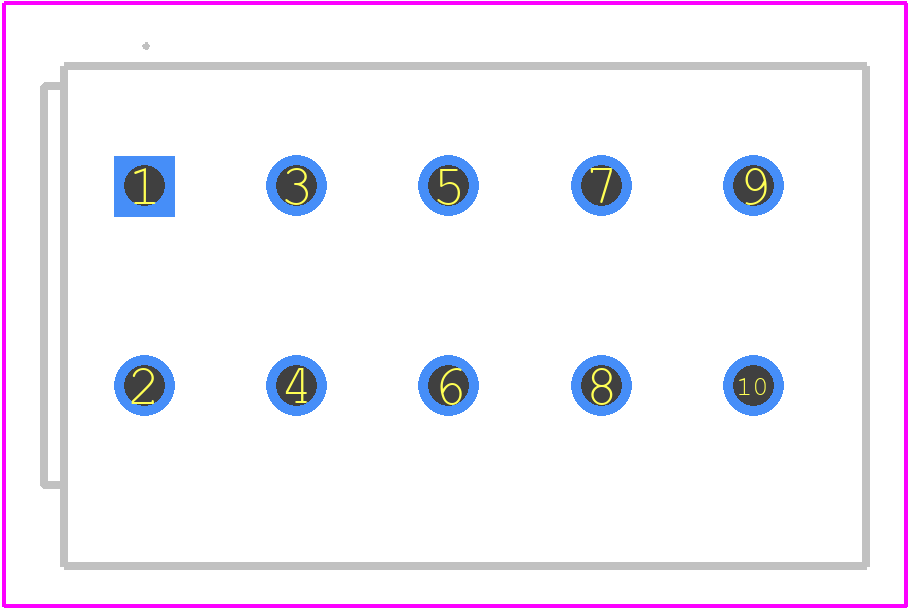

PCB Footprints
235-105 - Wago PCB footprint - Other - Other - 235-105-2
click to zoom
3D Models
235-105 - Wago - 3D model - Other - 235-105-2
click to zoom

235-105 Details

  • Manufacturer Part Number:

    235-105

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.97

  • Additional Feature:

    SIDE ENTRY

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    5

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

235-105 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the WAGO application notes.
  • Yes, the connector is rated IP67, making it suitable for outdoor use and resistant to water and dust ingress.
  • Yes, the connector is designed to work with both solid and stranded wire, but make sure to follow the recommended wire preparation and termination procedures.
  • The connector is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the connector meets the requirements of UL 310, ensuring compliance with North American safety standards.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

235-105 Overview

Use the download button to access the 235-105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 235-1, or try a keyword search, such as Terminals and Terminal Blocks
