235-405/331-000 - Wago

Description: PCB terminal block; push-button; 1.5 mm²; Pin spacing 5/5.08 mm; 5-pole; Push-in CAGE CLAMP®

Download 235-405/331-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
235-405/331-000 - Wago - PCB symbol
click to zoom
PCB Footprints

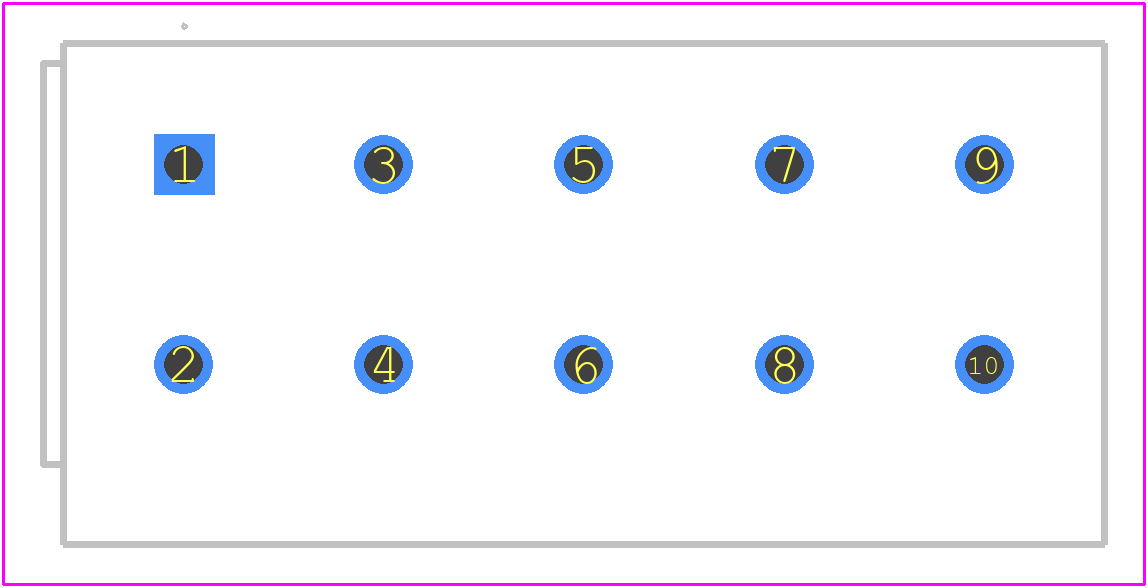

235-405/331-000 - Wago PCB footprint - Other - Other - 235-405/331-000-1
click to zoom
3D Models
235-405/331-000 - Wago - 3D model - Other - 235-405/331-000-1
click to zoom

235-405/331-000 Details

  • Manufacturer Part Number:

    235-405/331-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.83

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    14 AWG

235-405/331-000 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 235-405/331-000 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
  • Yes, the 235-405/331-000 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 235-405/331-000 connector is designed to withstand high-vibration applications, with a vibration resistance of 10 g (according to IEC 60068-2-6).
  • The operating temperature range of the 235-405/331-000 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 235-405/331-000 connector is UL recognized and meets the requirements of UL 1977 and UL 498A.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

235-405/331-000 Overview

Use the download button to access the 235-405/331-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 235-4, or try a keyword search, such as Terminals and Terminal Blocks
