2350514-8 - TE Connectivity

Description: Header, Wire-to-Board, 8 Position, 3.5 mm [.137 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board, PCB Terminal Blocks

Download 2350514-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2350514-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

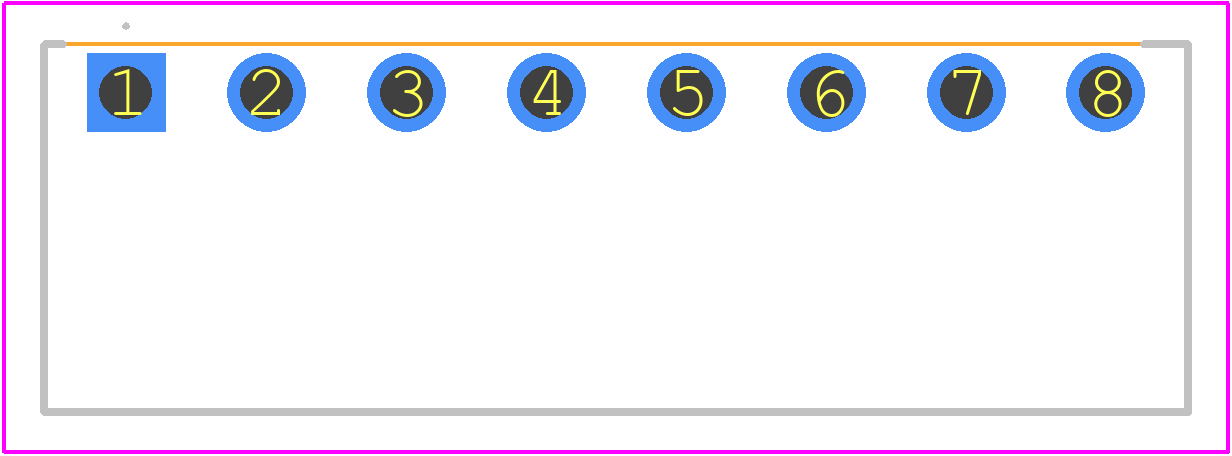

2350514-8 - TE Connectivity PCB footprint - Other - Other - 2350514-8-1
click to zoom
3D Models
2350514-8 - TE Connectivity - 3D model - Other - 2350514-8-1
click to zoom

2350514-8 Details

  • Manufacturer Part Number:

    2350514-8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Mounting Type:

    BOARD

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2350514-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2350514-8 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial automation, transportation, and aerospace.
  • The 2350514-8 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Additionally, the connector's materials are resistant to UV and corrosion, making it suitable for outdoor use.
  • While the datasheet specifies AWG 14-22 wire sizes, it's possible to use this connector with other wire sizes. However, it's crucial to consult with TE Connectivity's application engineers or perform thorough testing to ensure reliable connections and prevent damage to the connector or wire.
  • The 2350514-8 connector has a maximum operating temperature of 150°C (302°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
