2357739-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

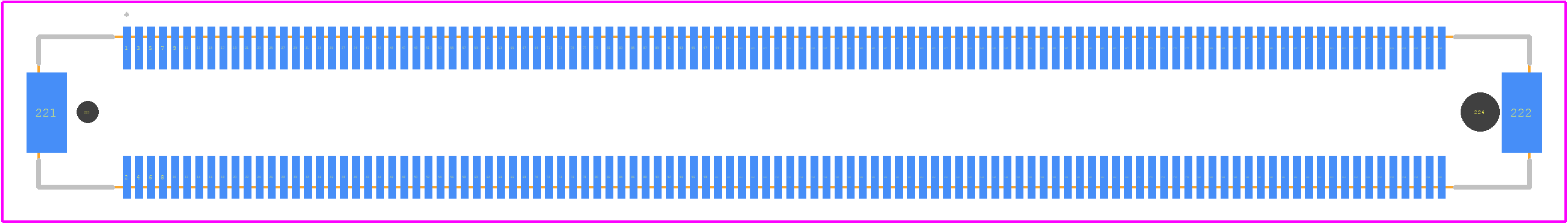

2357739-1 - TE Connectivity PCB footprint - Other - Other - 2357739-1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2357739-1
Part Number 2357739-1
Manufacturer TE Connectivity
Pin Count 222
Part Category Connector
Package Category Other
Footprint Name Other - 2357739-1-1
Released Date Aug 15, 2024
Last Modified Date Dec 15, 2024 10:37 PM UTC
Pinout / Pin List Click Here (Member Only)

2357739-1 Details

Manufacturer Part Number:
2357739-1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
15 Weeks
Manufacturer:
TE Connectivity
YTEOL:
8
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mains Connector Rating:
.5A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
8u inch
Polarization Key:
POLARIZED
Rated Current (Signal):
0.5 A
Reference Standard:
UL
Terminal Pitch:
0.5 mm
Termination Type:
SURFACE MOUNT
UL Flammability Code:
94V-0

2357739-1 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 2357739-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
The operating temperature range for the 2357739-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
The 2357739-1 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for use in applications where it will be exposed to harsh chemicals or continuous immersion in water.
The mating cycle life of the 2357739-1 connector is 500 cycles. This means it can withstand 500 mating and unmating cycles without compromising its performance or reliability.
