Part Image

2357787-3 - TE Connectivity

Description: Board to Board & Mezzanine Connectors 16G,05FH,plug22OP,5H emboss w/ cap-1

Download 2357787-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2357787-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

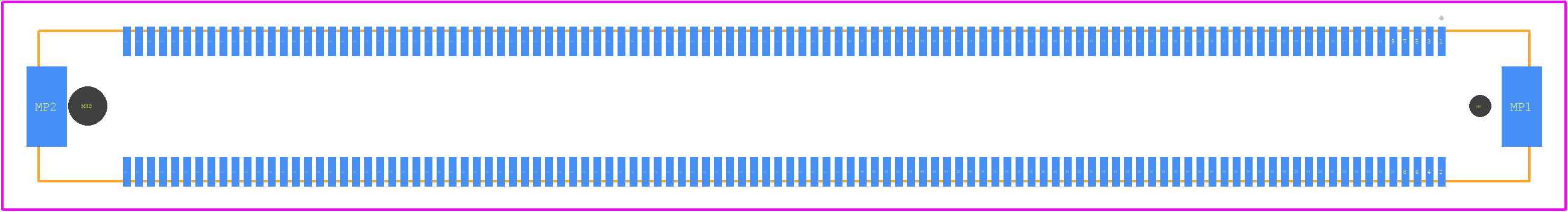

2357787-3 - TE Connectivity PCB footprint - Other - Other - 2357787-3-3
click to zoom
3D Models
2357787-3 - TE Connectivity - 3D model - Other - 2357787-3-3
click to zoom

2357787-3 Details

  • Manufacturer Part Number:

    2357787-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    8u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • UL Flammability Code:

    94V-0

2357787-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2357787-3 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet recommends AWG 20-18 wire sizes, the connector can accommodate smaller wire sizes (up to AWG 22) with some adjustments to the wire stripping and termination process. However, using larger wire sizes may not be possible due to the connector's design constraints.
  • The 2357787-3 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F). While it can withstand some exposure to chemicals, it's essential to follow TE Connectivity's guidelines for environmental exposure and to consult with their technical support team for specific application requirements.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines to ensure proper connector mating and to prevent damage to the connector or PCB. Key considerations include keeping the PCB surface clean and flat, using a sufficient solder mask, and following the recommended pad layout and spacing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2357787-3 Overview

Use the download button to access the 2357787-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23577, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
