2358256-1 - TE Connectivity

Description: Configuration Features: Number of Positions 50 | Number of Power Positions 50 | Number of Signal Positions 0 | Number of Dual Positions 25 | Contact Features: Contact Current Rating (Max) 9.3 AMP | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness .76 MICM | Contact Mating Area Plating Material Thickness 30 MICIN | Dimensions: Power Contact Centerline .1 INCH | Power Contact Centerline 2.54 MM | Electrical Characteristics: Operating Voltage 100 V | Operating Voltage

Download 2358256-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

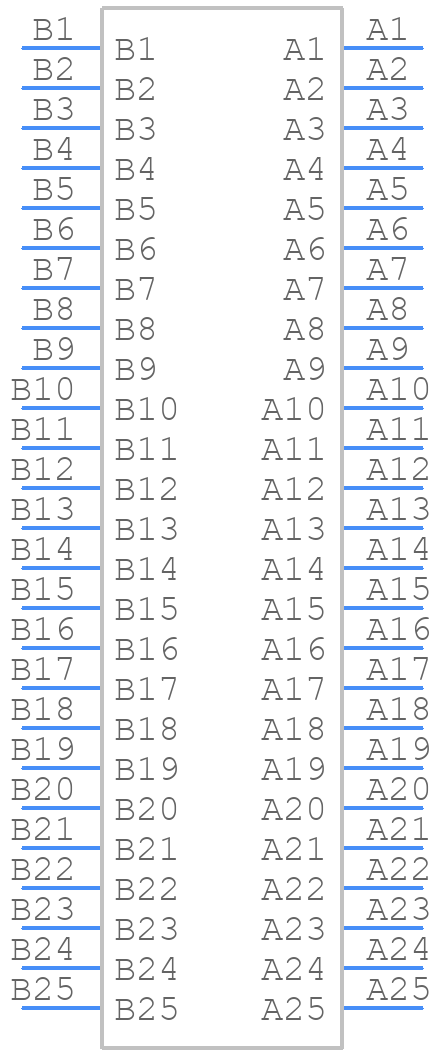

2358256-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

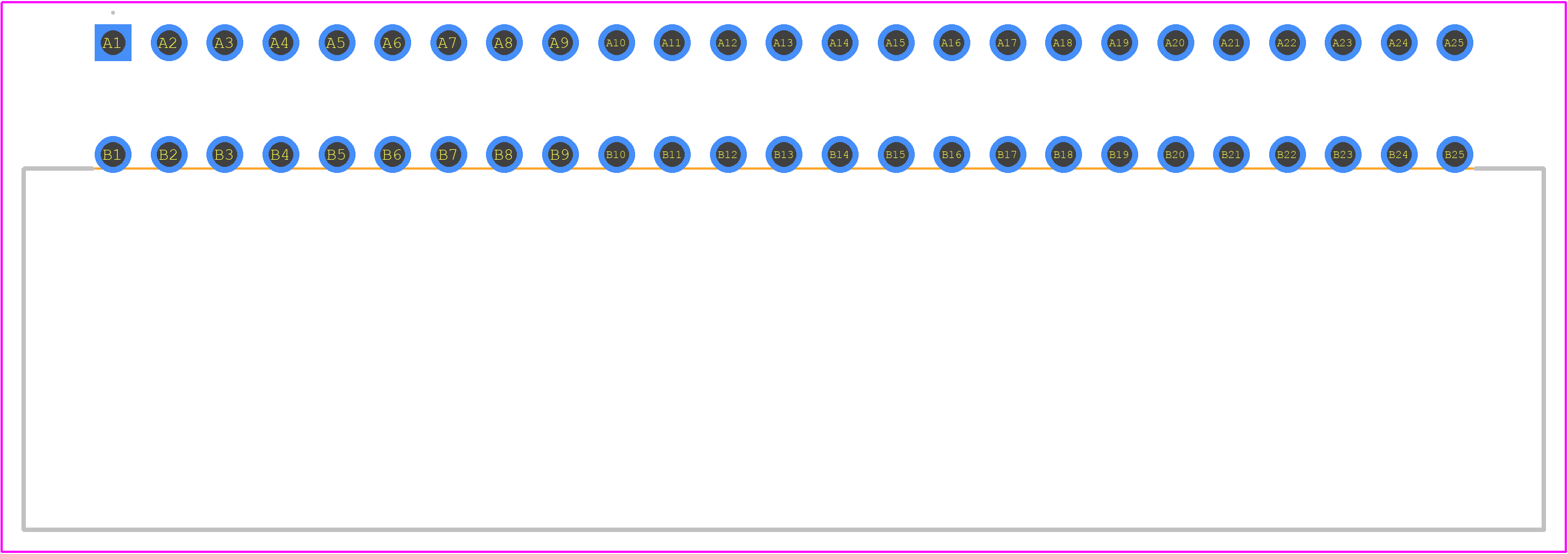

2358256-1 - TE Connectivity PCB footprint - Other - Other - 2358256-1-2
click to zoom
3D Models
2358256-1 - TE Connectivity - 3D model - Other - 2358256-1-2
click to zoom

2358256-1 Details

  • Manufacturer Part Number:

    2358256-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 2.54 MM

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    9.3A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    9.3 A

  • Rated Voltage:

    100 V

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

2358256-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2358256-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The 2358256-1 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The operating temperature range of the 2358256-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 2358256-1 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. It's essential to ensure compatibility before using the connector with other products to ensure proper mating and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2358256-1 Overview

Use the download button to access the 2358256-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23582, or try a keyword search, such as Headers and Edge Type Connectors
