236-406 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 6-pole; CAGE CLAMP®; commoning option

Download 236-406 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

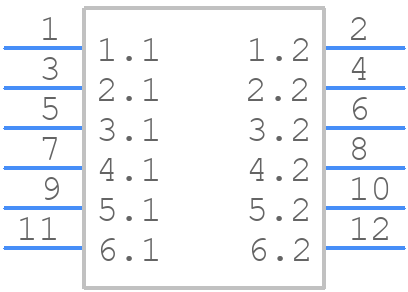

236-406 - Wago - PCB symbol
click to zoom
PCB Footprints

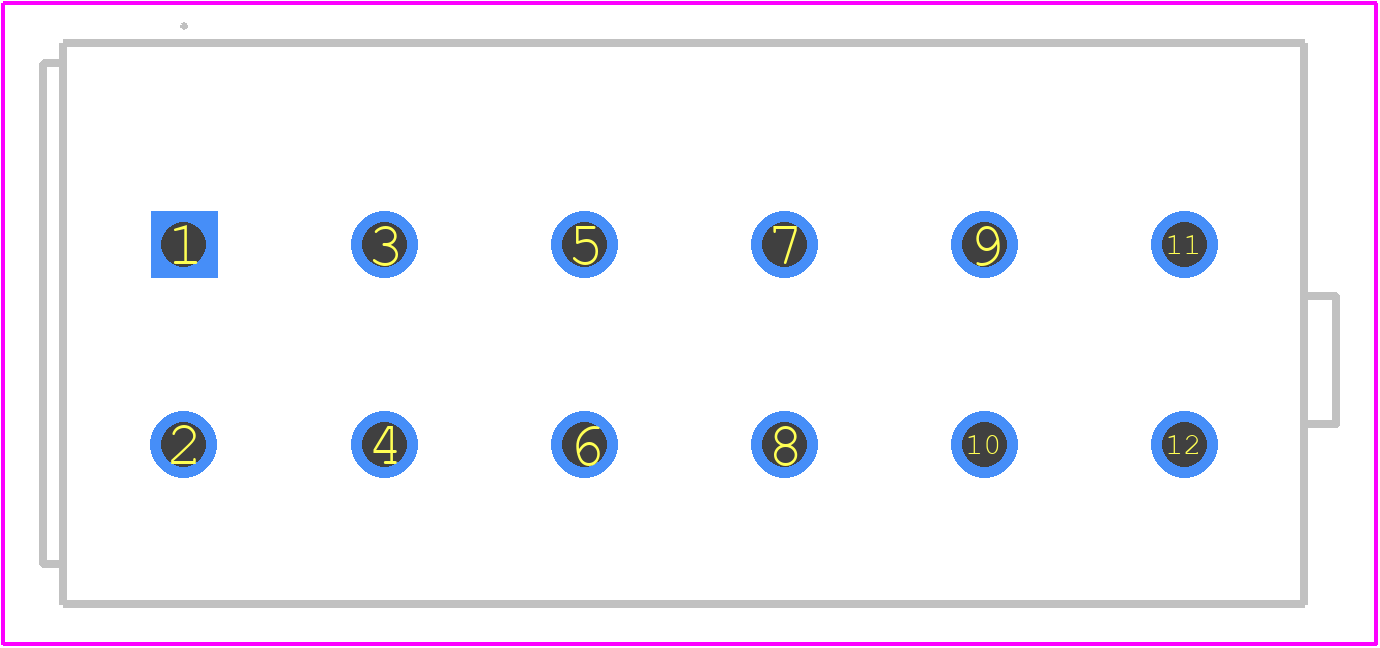

236-406 - Wago PCB footprint - Other - Other - 236-406-4
click to zoom
3D Models
236-406 - Wago - 3D model - Other - 236-406-4
click to zoom

236-406 Details

  • Manufacturer Part Number:

    236-406

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Additional Feature:

    CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

236-406 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 236-406 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
  • Yes, the 236-406 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 1, Class B.
  • Yes, the 236-406 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 236-406 connector is suitable for use with stranded wires. However, it's recommended to use wires with a minimum strand count of 30 to ensure reliable connections.
  • The operating temperature range of the 236-406 connector is -40°C to 125°C (-40°F to 257°F).
