The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the WAGO application notes for specific guidance.
Yes, the 236-409 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6). However, it's crucial to ensure proper mounting and screwing to prevent loosening or damage.
The 236-409 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional protection measures.
While the datasheet specifies a wire size range of 0.5 mm² to 2.5 mm², it's possible to use smaller or larger wire sizes with caution. However, this may affect the connector's performance, and it's recommended to consult WAGO's application notes or contact their technical support for guidance.
To ensure reliable connections, follow proper wiring and termination techniques, use the correct wire stripping length, and apply the recommended torque. Additionally, consider using WAGO's wire connectors with a built-in test point for easier troubleshooting.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
236-409 Overview

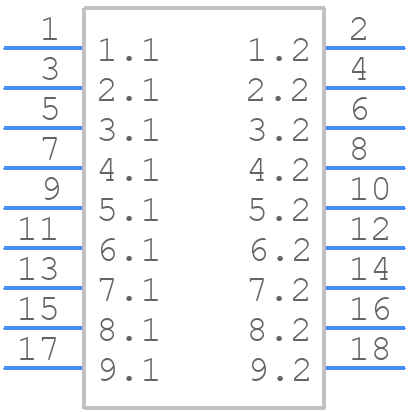

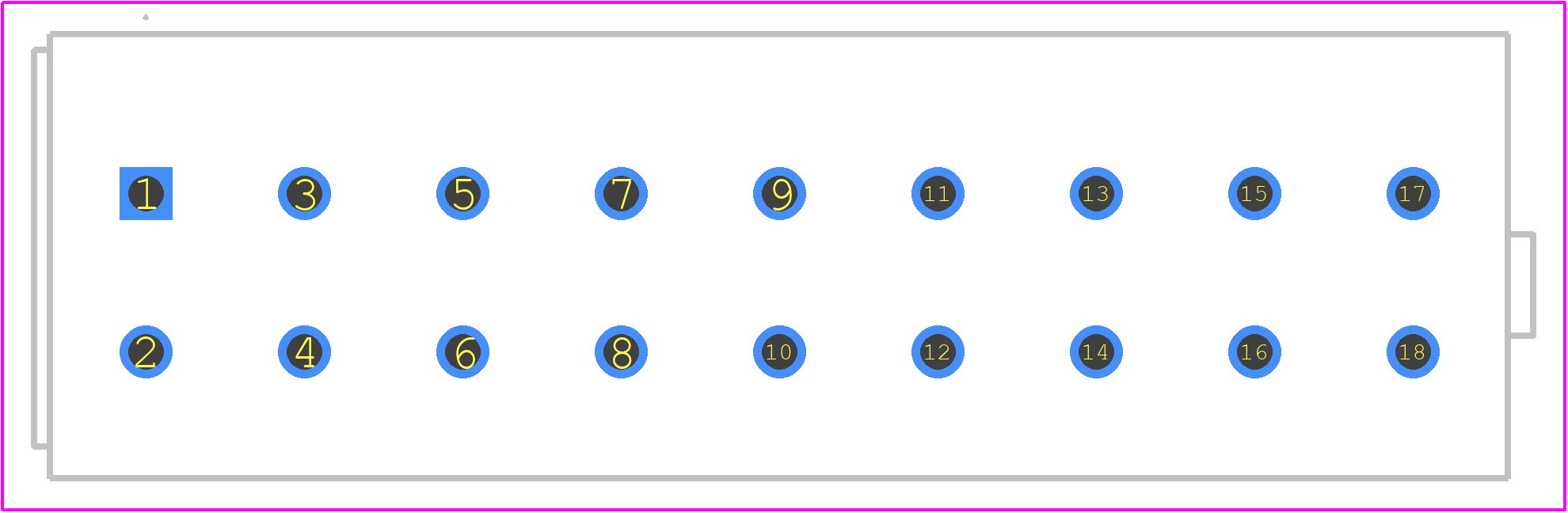

Use the download button to access the 236-409 schematic symbol, PCB footprint, and 3D model.
