Part Image

236-419 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 19-pole; CAGE CLAMP®; commoning option

Download 236-419 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

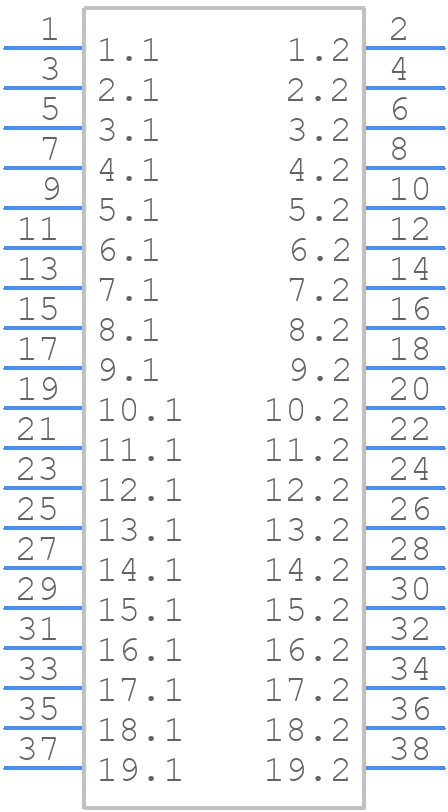

236-419 - Wago - PCB symbol
click to zoom
PCB Footprints

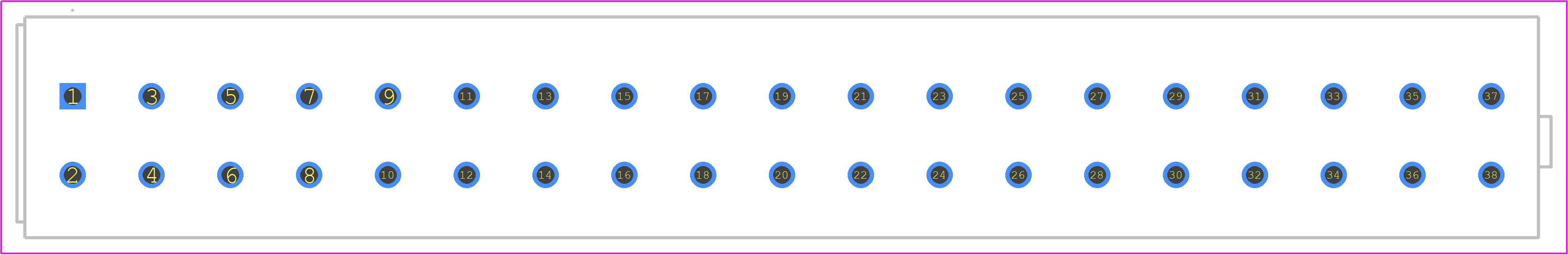

236-419 - Wago PCB footprint - Other - Other - 236-419-1
click to zoom
3D Models
236-419 - Wago - 3D model - Other - 236-419-1
click to zoom

236-419 Details

  • Manufacturer Part Number:

    236-419

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

236-419 Overview

Use the download button to access the 236-419 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 236-4, or try a keyword search, such as Terminals and Terminal Blocks
