236-448 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 48-pole; CAGE CLAMP®; commoning option

Download 236-448 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
236-448 - Wago - PCB symbol
click to zoom
PCB Footprints

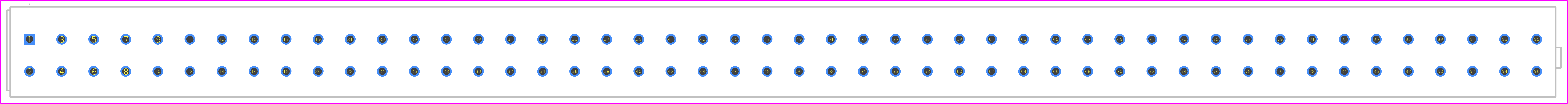

236-448 - Wago PCB footprint - Other - Other - 236-448-1
click to zoom
3D Models
236-448 - Wago - 3D model - Other - 236-448-1
click to zoom

236-448 Details

  • Manufacturer Part Number:

    236-448

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.75

  • Additional Feature:

    FRONT/SIDE ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    48

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

236-448 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6.
  • Yes, the connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH.
  • The maximum current rating per contact is 8 A, but this may vary depending on the specific application and wire size used.
  • Yes, the connectors are designed for automated assembly and can be used with standard pick-and-place machines.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

236-448 Overview

Use the download button to access the 236-448 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 236-4, or try a keyword search, such as Terminals and Terminal Blocks
