236-504 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 7.5/7.62 mm; 4-pole; CAGE CLAMP®; commoning option

Download 236-504 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
236-504 - Wago - PCB symbol
click to zoom
PCB Footprints

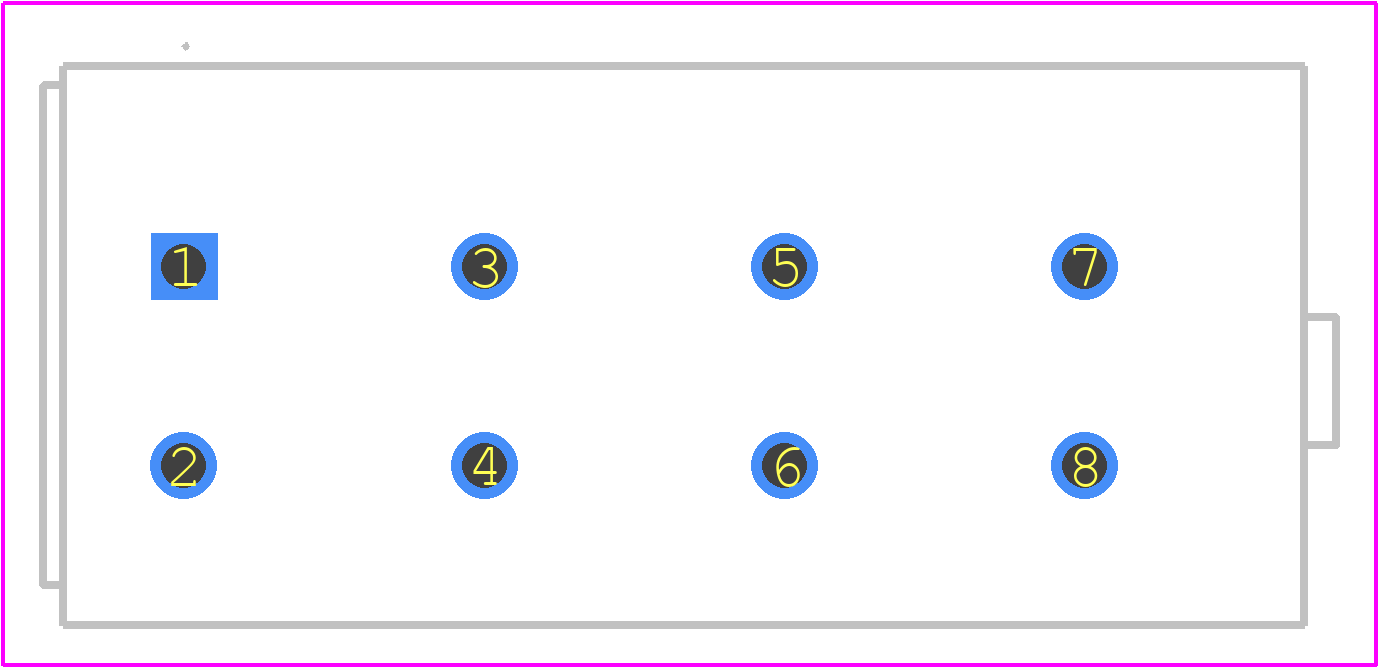

236-504 - Wago PCB footprint - Other - Other - 236-504-2
click to zoom
3D Models
236-504 - Wago - 3D model - Other - 236-504-2
click to zoom

236-504 Details

  • Manufacturer Part Number:

    236-504

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Additional Feature:

    FRONT/SIDE ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

236-504 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for applications with high vibration levels.
  • Yes, the connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity levels up to 95% RH, making it suitable for harsh environments.
  • The maximum current rating is 12 A per contact, depending on the specific application and wire size used.
  • Yes, the connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
