2360189-5 - TE Connectivity

Description: Configuration Features: Number of Positions 124 | Number of Rows 2 | PCB Mount Orientation Vertical | Contact Features: Contact Base Material Copper Alloy | Contact Mating Area Plating Material Thickness 30 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) .5 AMP | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness .762 MICM | Contact Underplating Material Nickel | Housing Features: Centerline (Pitch) .6 MM | Centerline (Pitch) .

Download 2360189-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2360189-5 - TE Connectivity - PCB symbol
click to zoom

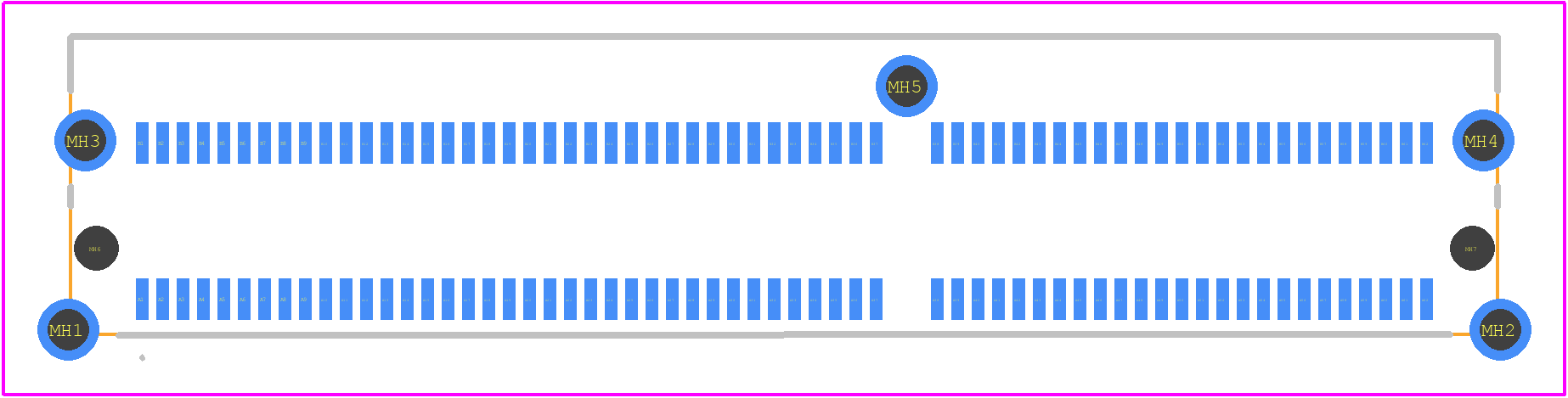

PCB Footprints
2360189-5 - TE Connectivity PCB footprint - Other - Other - 2360189-5-2
click to zoom
3D Models
2360189-5 - TE Connectivity - 3D model - Other - 2360189-5-2
click to zoom

2360189-5 Details

  • Manufacturer Part Number:

    2360189-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    17 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • Body/Shell Style:

    PLUG

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

2360189-5 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2360189-5 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 2360189-5 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature specifications.
  • The 2360189-5 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, consult with TE Connectivity or a qualified engineer to determine the connector's suitability and any necessary precautions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2360189-5 Overview

Use the download button to access the 2360189-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23601, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
