2369315-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

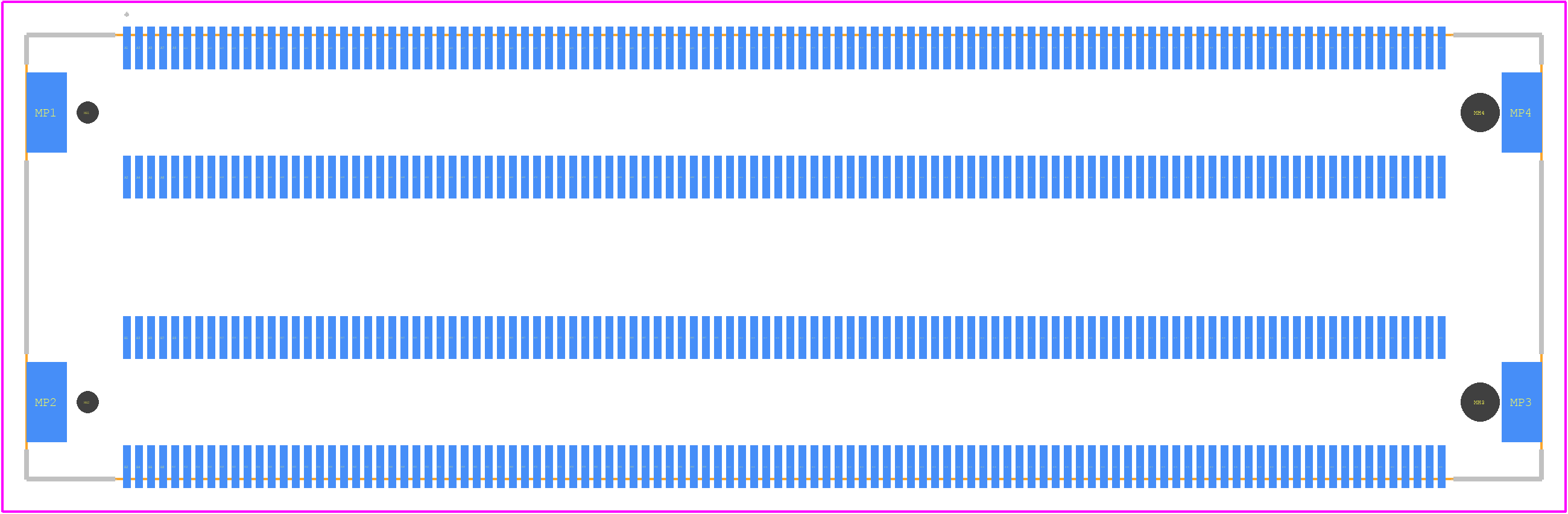

PCB Footprints

2369315-1 - TE Connectivity PCB footprint - Other - Other - 2369315-1-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2369315-1
Part Number 2369315-1
Manufacturer TE Connectivity
Pin Count 444
Part Category Connector
Package Category Other
Footprint Name Other - 2369315-1-3
Released Date May 27, 2021
Last Modified Date Mar 24, 2025 2:47 PM UTC
Pinout / Pin List Click Here (Member Only)

2369315-1 Details

Manufacturer Part Number:
2369315-1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
11 Weeks, 4 Days
Manufacturer:
TE Connectivity
YTEOL:
8
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mains Connector Rating:
.5A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
8u inch
Rated Current (Signal):
0.5 A
Reference Standard:
UL
Terminal Pitch:
0.5 mm
Termination Type:
SURFACE MOUNT
UL Flammability Code:
94V-0

2369315-1 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
Yes, the 2369315-1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 2369315-1 connector has a rating of IP67, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for continuous outdoor use or exposure to harsh environmental conditions without proper protection.
The 2369315-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with proper derating. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector can handle the desired wire size and current rating.
