2371552-1 - TE Connectivity

Description: 144 Position High Speed Backplane Connector, 9 Row, 16 Column, PCB Mount Receptacle, Vertical, Unshrouded, 1.8 mm Centerline

Download 2371552-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2371552-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

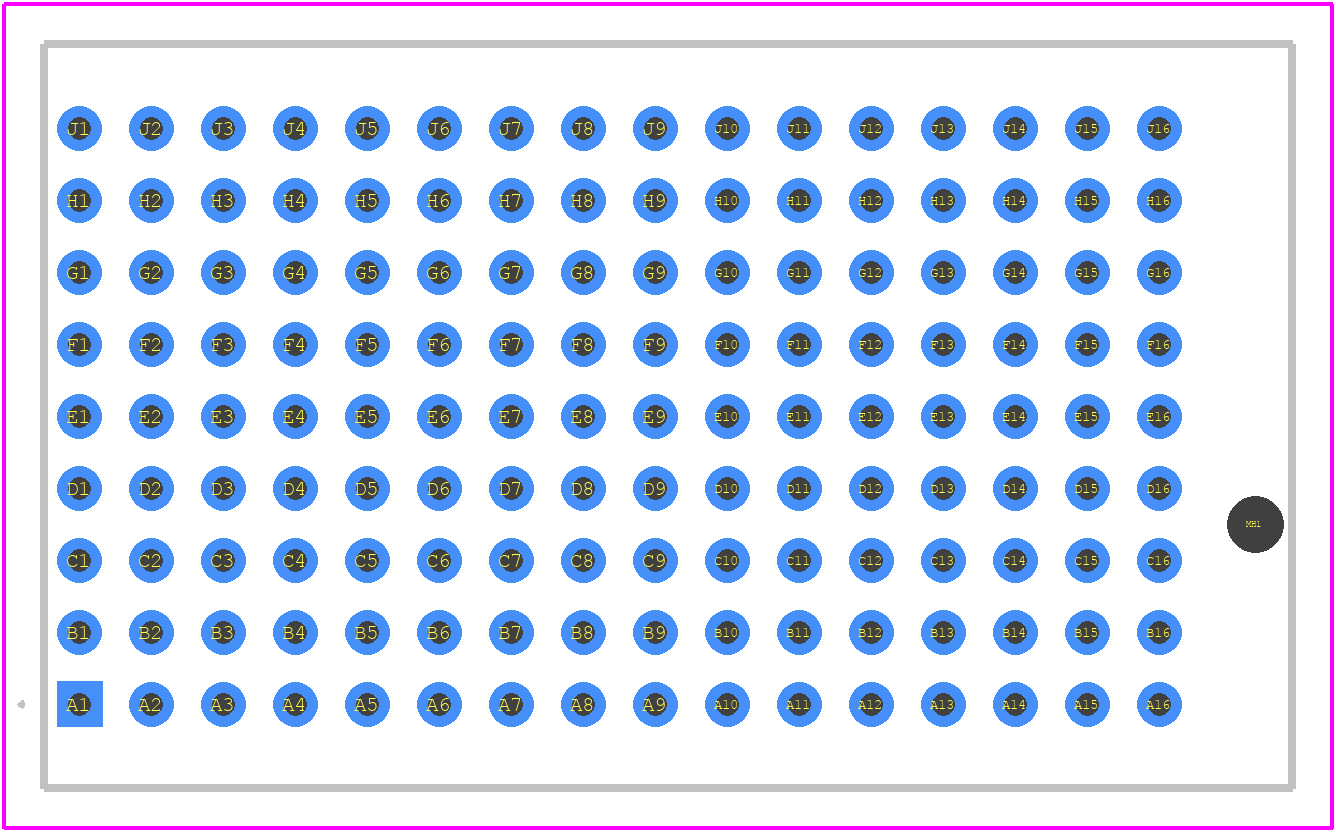

2371552-1 - TE Connectivity PCB footprint - Other - Other - 2371552-1-2
click to zoom
3D Models
2371552-1 - TE Connectivity - 3D model - Other - 2371552-1-2
click to zoom

2371552-1 Details

  • Manufacturer Part Number:

    2371552-1

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1 A

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    144

2371552-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2371552-1 connector is designed to withstand vibrations up to 10g (according to IEC 60068-2-6). However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2371552-1 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's recommended to use additional sealing or protective measures for extended outdoor use or exposure to harsh environments.
  • The 2371552-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 2371552-1 connector is designed to be compatible with other TE Connectivity products. However, it's recommended to verify compatibility with third-party components before use. Consult with TE Connectivity's technical support or the third-party manufacturer for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2371552-1 Overview

Use the download button to access the 2371552-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23715, or try a keyword search, such as Headers and Edge Type Connectors
