2372133-2 - TE Connectivity

Description: Configuration Features: Number of Positions 76 | Contact Features: PCB Contact Termination Area Plating Material Gold | Contact Current Rating (Max) .5 AMP | Dimensions: PCB Thickness (Recommended) 2.2 MM | PCB Thickness (Recommended) .086 INCH | Electrical Characteristics: Data Rate (Max) 112 GBS | Housing Features: Centerline (Pitch) .8 MM | Centerline (Pitch) .032 INCH | Industry Standards: UL Flammability Rating UL 94V-0 | Operation/Application: Circuit Application High Speed Data | Pluggable I/O Applic

Download 2372133-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2372133-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

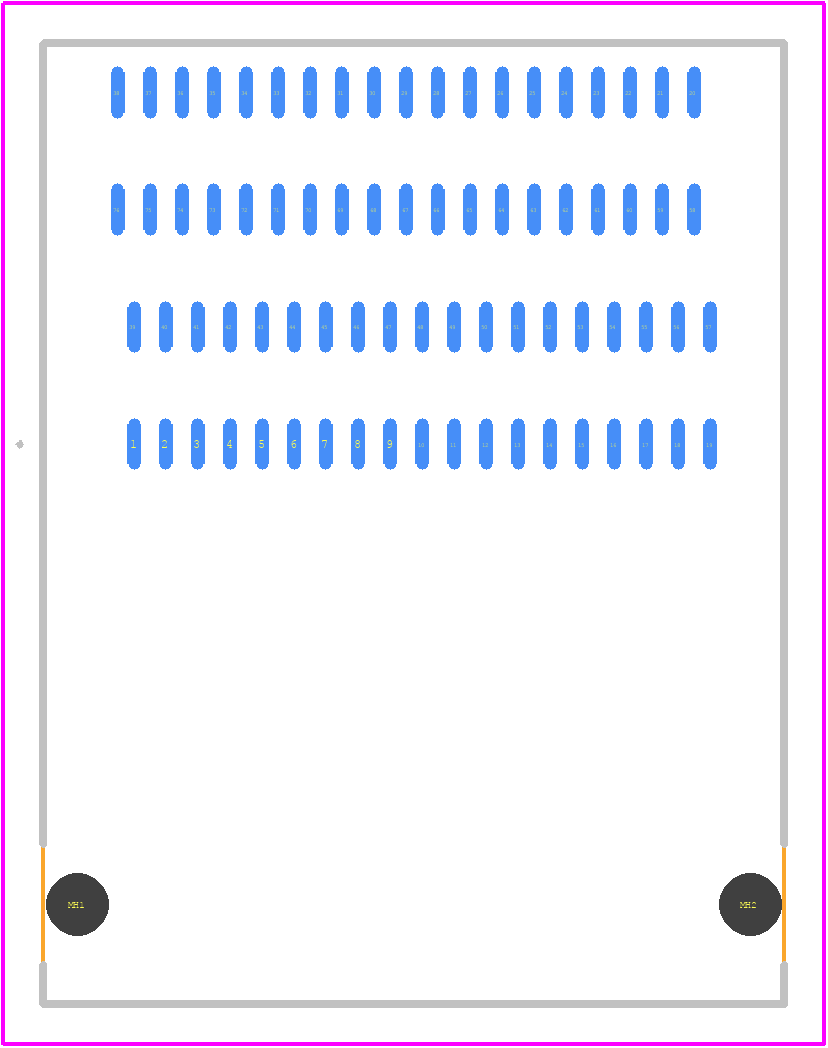

2372133-2 - TE Connectivity PCB footprint - Other - Other - 2372133-2-1
click to zoom
3D Models
2372133-2 - TE Connectivity - 3D model - Other - 2372133-2-1
click to zoom

2372133-2 Details

  • Manufacturer Part Number:

    2372133-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Factory Lead Time:

    10 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current:

    0.5 A

  • Terminal Type:

    SURFACE MOUNT

2372133-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2372133-2 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with TE Connectivity's technical support team.
  • The operating temperature range for the 2372133-2 connector is -40°C to 125°C (-40°F to 257°F).
  • The 2372133-2 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to consult with TE Connectivity's technical support team for specific environmental requirements.
