2384723-3 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Positions 34 | PCB Mount Orientation Right Angle | Number of Rows 4 | Contact Features: Contact Current Rating (Max) 3 AMP | Contact Type Pin | Contact Mating Area Plating Material Gold | Housing Features: Centerline (Pitch) .118 INCH | Centerline (Pitch) 3 MM | Mechanical Attachment: Connector Mounting Type Panel Mount | Packaging Features: Packaging Method Bag | Product Type Features: Sealable Yes | PCB Connector Assembly Type

Download 2384723-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

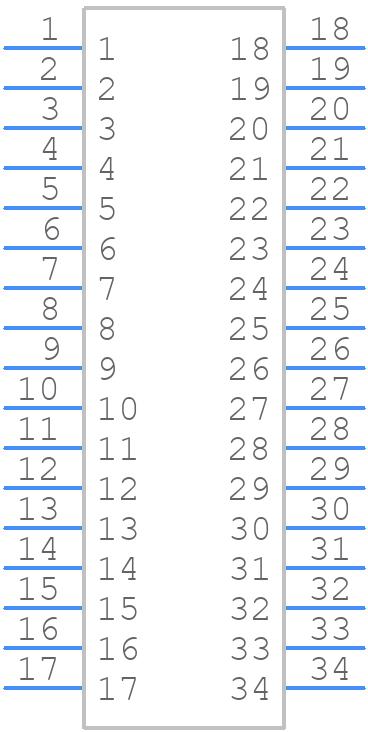

2384723-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

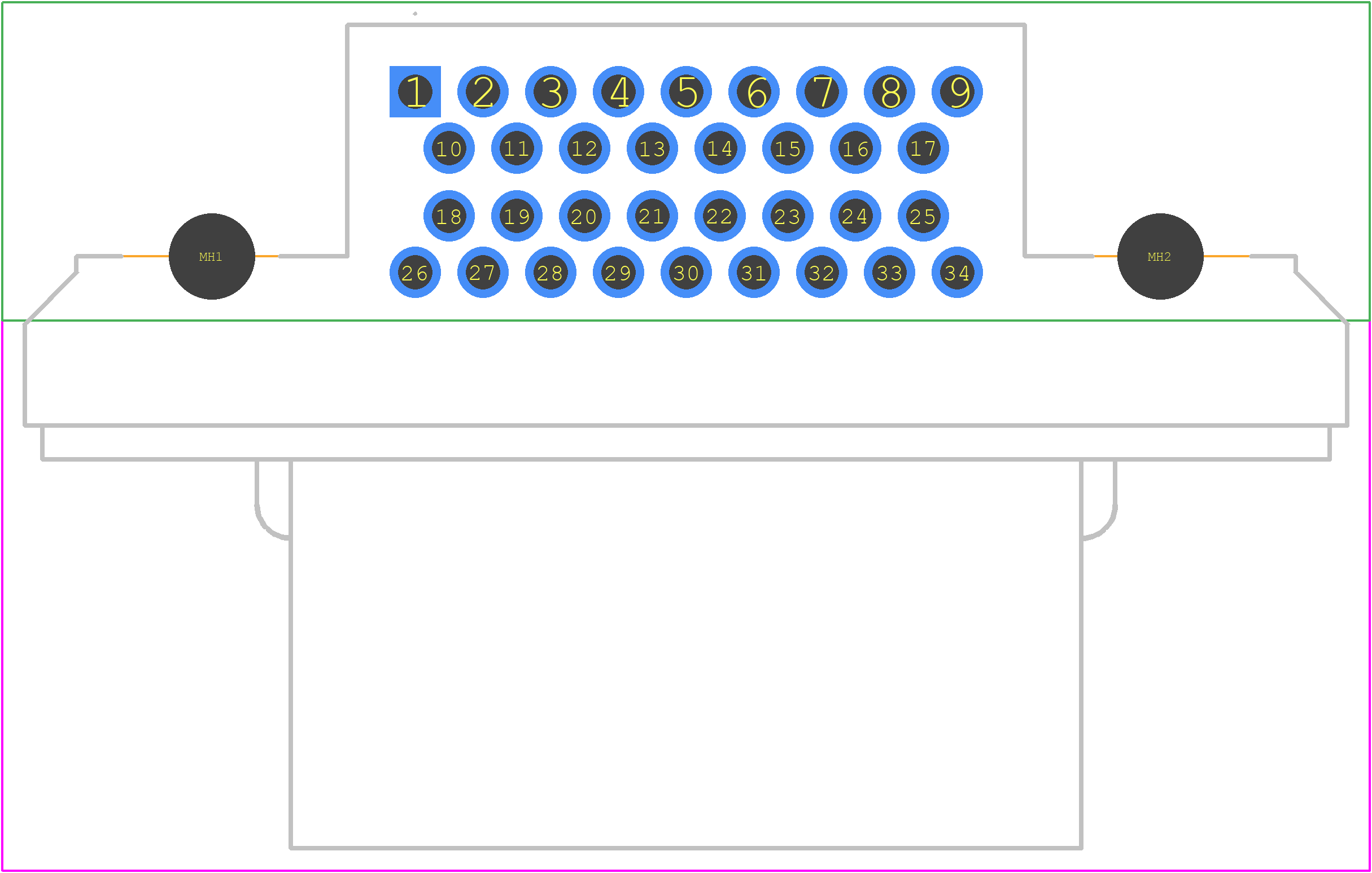

2384723-3 - TE Connectivity PCB footprint - Other - Other - 2384723-3-4
click to zoom
3D Models
2384723-3 - TE Connectivity - 3D model - Other - 2384723-3-4
click to zoom

2384723-3 Details

  • Manufacturer Part Number:

    2384723-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

2384723-3 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 2384723-3 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes ranging from AWG 18 to AWG 26, but this may affect the connector's performance and reliability.
  • The 2384723-3 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of environments.
  • Yes, the connector is designed to be resistant to moisture, corrosion, and chemicals, making it suitable for use in harsh environments, but it's essential to follow proper installation and sealing procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2384723-3 Overview

Use the download button to access the 2384723-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23847, or try a keyword search, such as Combination Line Connectors
