2392557-1 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Rows Loaded A | PCB Mount Orientation Right Angle | Backplane Architecture Mezzanine | Rows Loaded D | Number of Positions 110 | Rows Loaded C | Number of Rows 5 | Rows Loaded B | Number of Columns 22 | Rows Loaded E | Contact Features: Contact Mating Area Plating Material Thickness 30 MICIN | Contact Current Rating (Max) 1.5 AMP | Feedthrough Post Length 3.3 MM | Contact Type Socket | Contact Mating Area Plating Material Gold | Contact Und

Download 2392557-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2392557-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

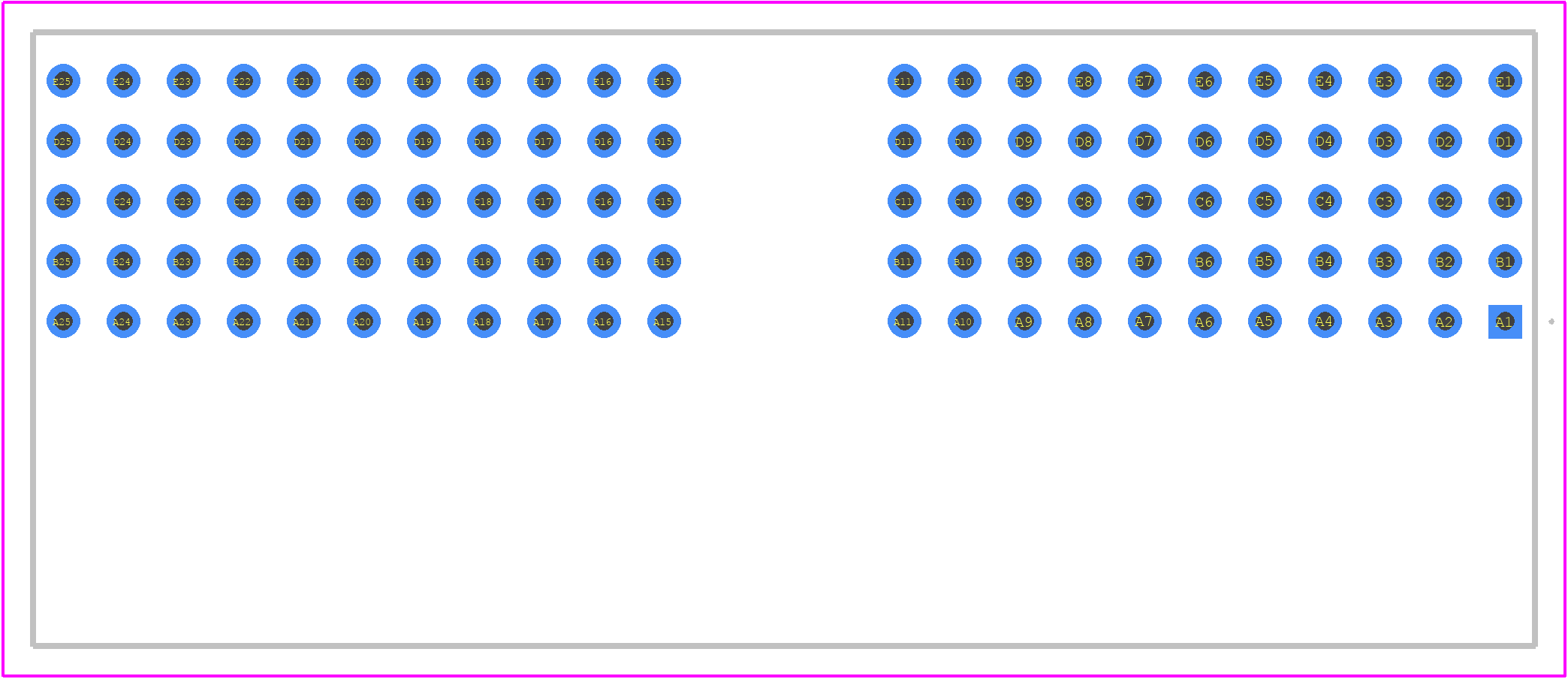

2392557-1 - TE Connectivity PCB footprint - Other - Other - 2392557-1-2
click to zoom
3D Models
2392557-1 - TE Connectivity - 3D model - Other - 2392557-1-2
click to zoom

2392557-1 Details

  • Manufacturer Part Number:

    2392557-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    GRAY

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    B,E,A,C,D

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    110

  • UL Flammability Code:

    94V-0

2392557-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2392557-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 2392557-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • The 2392557-1 connector has a sealed design that provides protection against moisture and humidity. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for use in environments with exposure to specific chemicals or extreme conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2392557-1 Overview

Use the download button to access the 2392557-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23925, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
