Part Image

2397129-1 - TE Connectivity

Description: Cable-to-Board, Horizontal, 12 Position, Board Mount, A Code, 2 mm [.08 in] Centerline, -40 – 105 °C [-40 – 221 °F], Data Connectivity Headers

Download 2397129-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

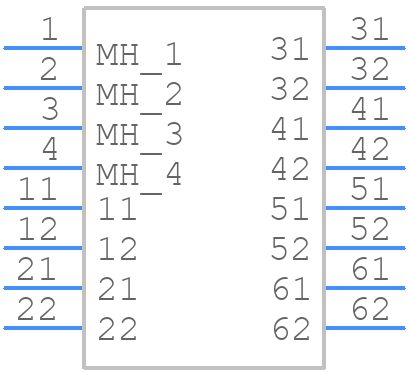

2397129-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

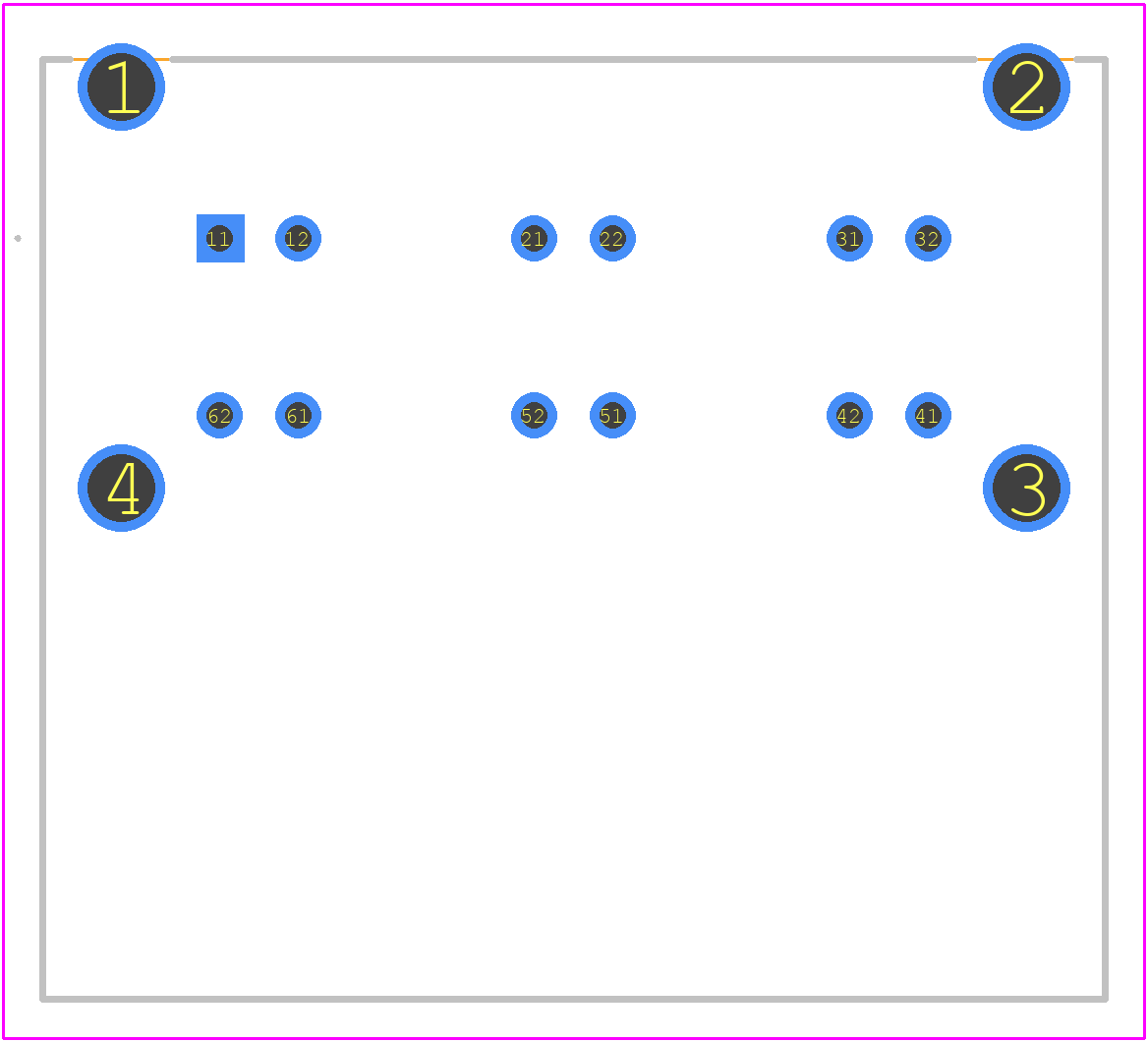

2397129-1 - TE Connectivity PCB footprint - Other - Other - 2397129-1-3
click to zoom
3D Models
2397129-1 - TE Connectivity - 3D model - Other - 2397129-1-3
click to zoom

2397129-1 Details

  • Manufacturer Part Number:

    2397129-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2397129-1 Overview

Use the download button to access the 2397129-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23971, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
