23C21E-40ML5 footprint, schematic symbol and 3D model by Rosenberger

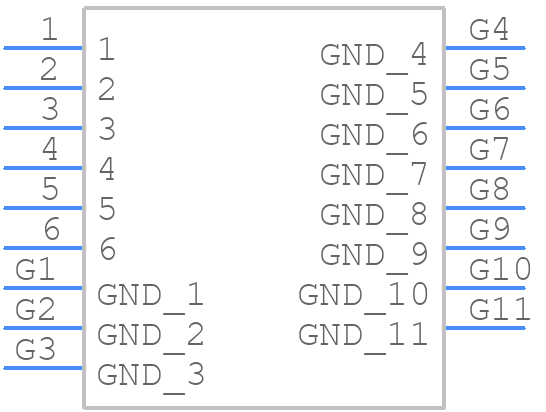

Symbol

click to zoom

PCB Footprints

23C21E-40ML5 - Rosenberger PCB footprint - Other - Other - 23C21E-40ML5-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 23C21E-40ML5
Part Number 23C21E-40ML5
Manufacturer Rosenberger
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 23C21E-40ML5-4
Released Date Jul 19, 2023
Last Modified Date Jul 19, 2023 7:24 AM UTC
Pinout / Pin List Click Here (Member Only)

23C21E-40ML5 Details

Manufacturer Part Number:
23C21E-40ML5
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Rosenberger
Body Breadth:
0.165 inch
Body Depth:
0.335 inch
Body Length:
0.49 inch
Characteristic Impedance:
50 Ω
Connector Type:
RF CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE AND FEMALE
Contact Material:
NOT APPLICABLE
Coupling Type:
SNAP
Insertion Loss:
0.224 dB
Insulator Material:
POLYTETRAFLUOROETHYLENE
JESD-609 Code:
e4
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Operating Frequency-Max:
20 GHz
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Shell Material:
BRASS
Termination Type:
SOLDER
Total Number of Contacts:
4
VSWR:
1.38

23C21E-40ML5 Frequently Asked Questions (FAQs)

The recommended torque value is 0.4 Nm to 0.6 Nm (3.5 in-lbs to 5.3 in-lbs) for the screw threads.
Yes, the 23C21E-40ML5 connector is designed to withstand high-vibration environments, making it suitable for use in automotive, aerospace, and industrial applications.
Yes, the 23C21E-40ML5 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C (-40°F to 257°F) and humidity up to 95% RH.
The 23C21E-40ML5 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
Yes, the 23C21E-40ML5 connector is part of the Rosenberger HSD (High-Speed Data) connector family and is compatible with other HSD connectors and adapters.
