TE Connectivity provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and mechanical stress on the component.
Handle the component by the body, avoiding touching the leads or the ceramic capacitor. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. For rework, use a hot air rework station with a controlled temperature and airflow to prevent overheating or damaging the component.
The maximum allowable voltage derating for the 23ESA105MMF50NF is typically 80% of the rated voltage. However, it's recommended to consult with TE Connectivity's application engineers or refer to their voltage derating guidelines for specific applications.
The 23ESA105MMF50NF is designed for general-purpose applications up to 50 MHz. For high-frequency applications above 50 MHz, it's recommended to consult with TE Connectivity's application engineers or consider using a more suitable component designed for high-frequency applications.
The 23ESA105MMF50NF meets various environmental standards, including RoHS and REACH. For specific environmental requirements, such as operating temperature range, humidity, or vibration, consult with TE Connectivity's application engineers or refer to their environmental testing and compliance documentation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
23ESA105MMF50NF Overview

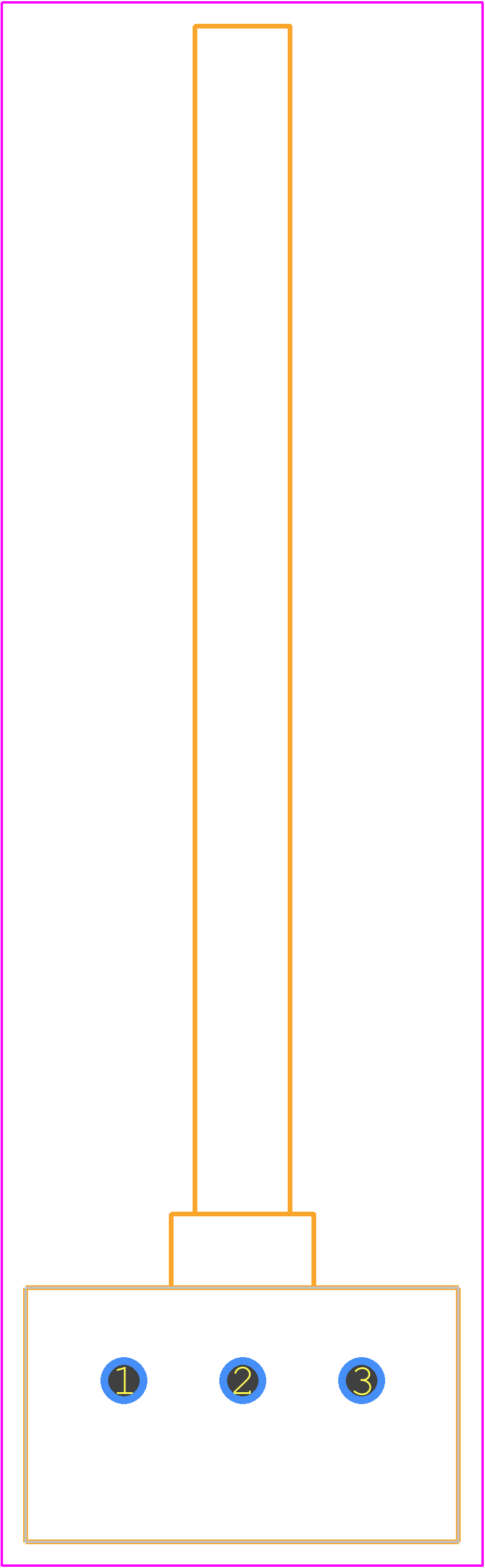

Use the download button to access the 23ESA105MMF50NF schematic symbol and PCB footprint.
