The thermal resistance of the 23J35RE is typically around 10°C/W, but this value can vary depending on the specific application and mounting method. It's recommended to consult with Ohmite's technical support or application notes for more information.
The 23J35RE is a wirewound resistor, which can exhibit inductive behavior at high frequencies. While it can be used in high-frequency applications, it's not the most ideal choice. Ohmite recommends using their non-inductive resistors, such as the HVC series, for high-frequency applications.
The 23J35RE is designed to withstand moderate vibration, but it's not recommended for extreme vibration environments. Ohmite offers specialized resistors, such as the VHC series, that are designed to withstand high-vibration and high-shock applications.
Ohmite recommends soldering the 23J35RE at a temperature of 260°C (500°F) for 3-5 seconds. However, it's essential to follow the specific soldering guidelines and procedures recommended by Ohmite to ensure reliable assembly and to prevent damage to the resistor.
Yes, the 23J35RE is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and hazardous substance-free components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
23J35RE Overview

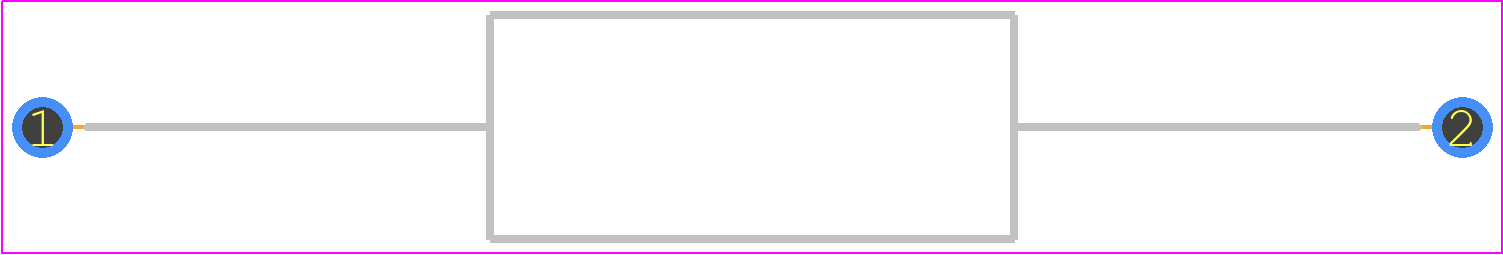

Use the download button to access the 23J35RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23J35,
or try a keyword search, such as Wire Wound Resistors
