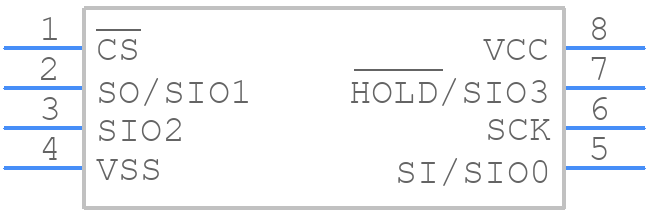

23LC512-I/P - Microchip

23LC512-I/P Details

• Manufacturer Part Number:

  23LC512-I/P

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DIP-8

• Pin Count:

  8

• Manufacturer Package Code:

  PDIP-8

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Clock Frequency-Max (fCLK):

  20 MHz

• I/O Type:

  SEPARATE

• JESD-30 Code:

  R-PDIP-T8

• Length:

  9.271 mm

• Memory Density:

  524288 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  8

• Number of Words:

  65536 words

• Number of Words Code:

  64000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  64KX8

• Output Characteristics:

  3-STATE

• Output Enable:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  SERIAL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.334 mm

• Standby Current-Max:

  0.00001 A

• Standby Voltage-Min:

  2.5 V

• Supply Current-Max:

  0.01 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
