24-6554-10 - ARIES

Description: Aries Electronics 2.54mm Pitch 24 Way Through Hole Universal ZIF Test Socket

Download 24-6554-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

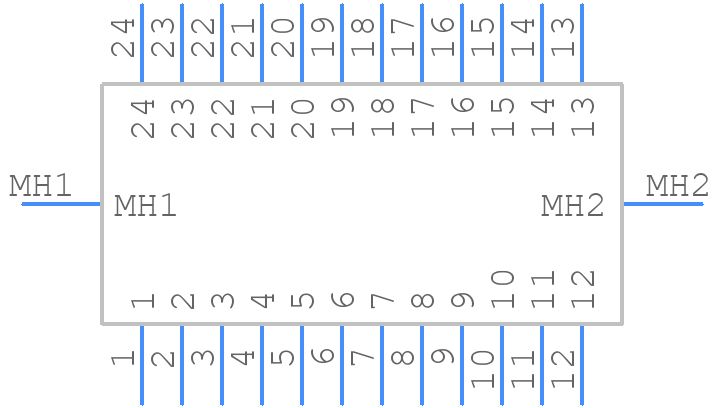

24-6554-10 - ARIES - PCB symbol
click to zoom
PCB Footprints

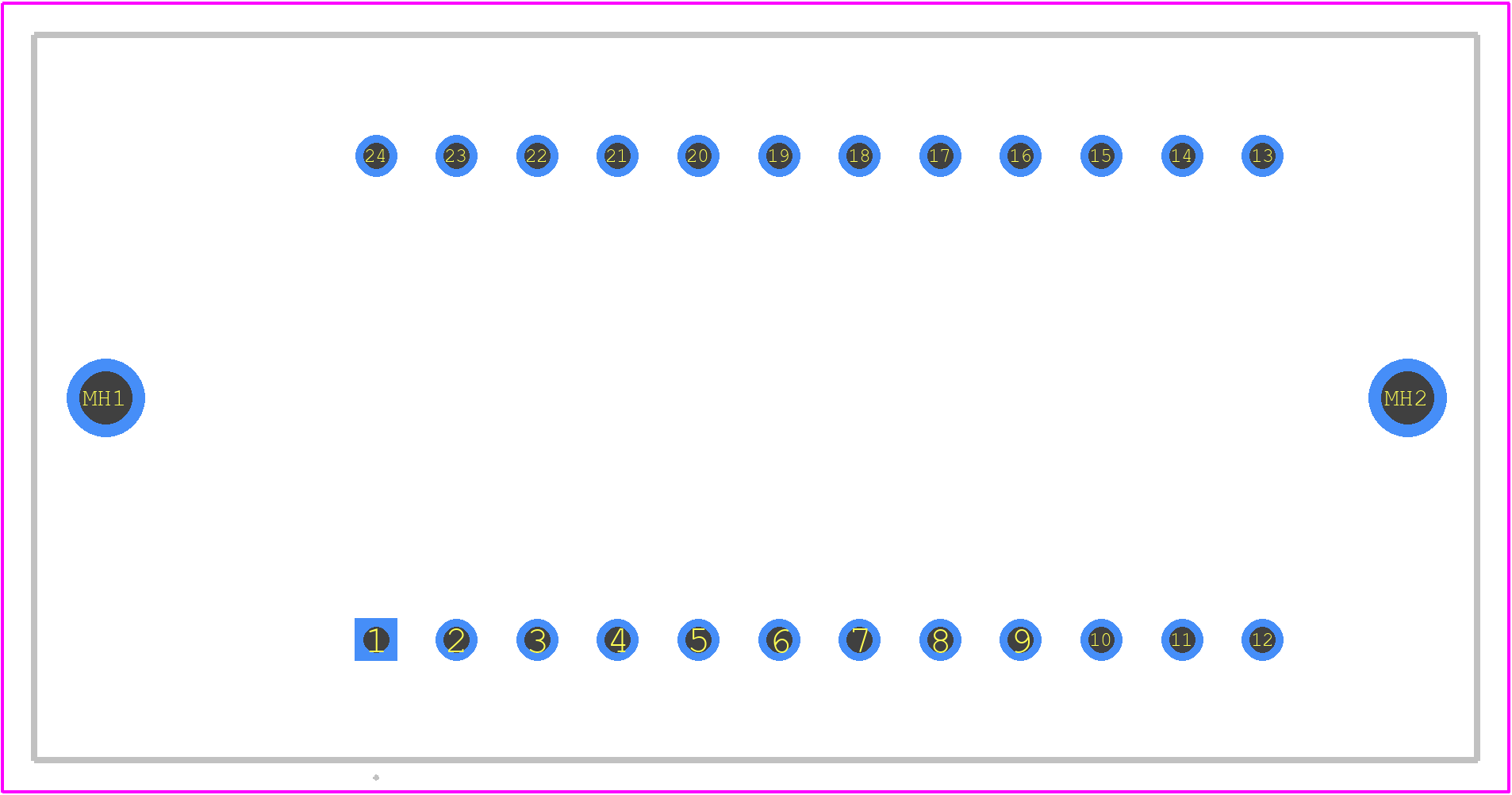

24-6554-10 - ARIES PCB footprint - Other - Other - 24-6554-10-9
click to zoom
3D Models
24-6554-10 - ARIES - 3D model - Other - 24-6554-10-9
click to zoom

24-6554-10 Details

  • Manufacturer Part Number:

    24-6554-10

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.9 inch

  • Body Depth:

    0.47 inch

  • Body Length:

    1.79 inch

  • Contact Finish Mating:

    MATTE TIN (200) OVER NICKEL

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BERYLLIUM COPPER ALLOY

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP36

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    24

  • Operating Temperature-Max:

    105 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

24-6554-10 Frequently Asked Questions (FAQs)

  • The recommended storage condition for the 24-6554-10 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
  • Yes, the 24-6554-10 is designed to withstand moderate vibration levels. However, it's recommended to consult with Aries Electronics Inc or a qualified engineer to determine the suitability of the component for specific high-vibration applications.
  • The maximum soldering temperature for the 24-6554-10 is 260°C (500°F) for a maximum of 10 seconds. Exceeding this temperature or time may damage the component.
  • Yes, the 24-6554-10 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.
  • The typical lead time for delivery of the 24-6554-10 varies depending on the quantity and availability. Please contact Aries Electronics Inc or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

24-6554-10 Overview

Use the download button to access the 24-6554-10 schematic symbol, PCB footprint, and 3D model.
