2410SFV15.0FM/065-2 - LITTELFUSE

Description: Littelfuse 15A FF Non-Resettable Surface Mount Fuse, 65V ac/dc

Download 2410SFV15.0FM/065-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2410SFV15.0FM/065-2 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

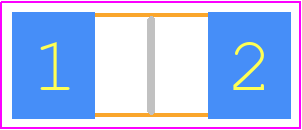

2410SFV15.0FM/065-2 - LITTELFUSE PCB footprint - Fuses Chip - Fuses Chip - 2410
click to zoom
3D Models
2410SFV15.0FM/065-2 - LITTELFUSE - 3D model - Fuses Chip - 2410
click to zoom

2410SFV15.0FM/065-2 Details

  • Manufacturer Part Number:

    2410SFV15.0FM/065-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.10.00.40

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    0

  • Blow Characteristic:

    VERY FAST

  • Body Breadth:

    2.64 mm

  • Body Height:

    2.36 mm

  • Body Length or Diameter:

    6.25 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • Fuse Size:

    2410

  • Joule Integral-Nom:

    102 J

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR

  • Pre-arcing Time-Min:

    10 ms

  • Rated Breaking Capacity:

    50 A

  • Rated Current:

    15 A

  • Rated Voltage(AC):

    65 V

  • Rated Voltage(DC):

    65 V

  • Reference Standard:

    UL

  • Surface Mount:

    YES

  • Terminal Shape:

    WRAPAROUND

2410SFV15.0FM/065-2 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the 2410SFV15.0FM/065-2 is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the component to prevent mechanical stress and damage.
  • The maximum surge current rating for the 2410SFV15.0FM/065-2 is 150A. Exceeding this rating may cause damage to the component or affect its performance.
  • Yes, the 2410SFV15.0FM/065-2 is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable assembly.
  • The operating temperature range for the 2410SFV15.0FM/065-2 is -40°C to 150°C (-40°F to 302°F). Operating outside this range may affect the component's performance and reliability.
