2410SFV2.00FM/125-2 footprint, schematic symbol and 3D model by LITTELFUSE

Symbol

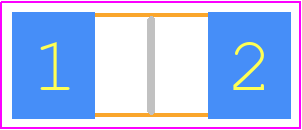

PCB Footprints

3D Models

2410SFV2.00FM/125-2 Details

The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
Yes, the 2410SFV2.00FM/125-2 is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and securement to prevent mechanical stress and damage.
The maximum surge current rating for the 2410SFV2.00FM/125-2 is 100A. Exceeding this rating may cause damage to the component.
Yes, the 2410SFV2.00FM/125-2 is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable assembly.
The operating temperature range for the 2410SFV2.00FM/125-2 is -40°C to 125°C (-40°F to 257°F). Operating outside this range may affect the component's performance and reliability.

Community Provided

System Verified

Community Approved

Use the download button to access the 2410SFV2.00FM/125-2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2410S, or try a keyword search, such as Electric Fuses
