2422420000 - Weidmüller

Description: contact insert (circular connector), Solder connection, M12, Number of poles: 8, Coding: A-coded

Download 2422420000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2422420000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

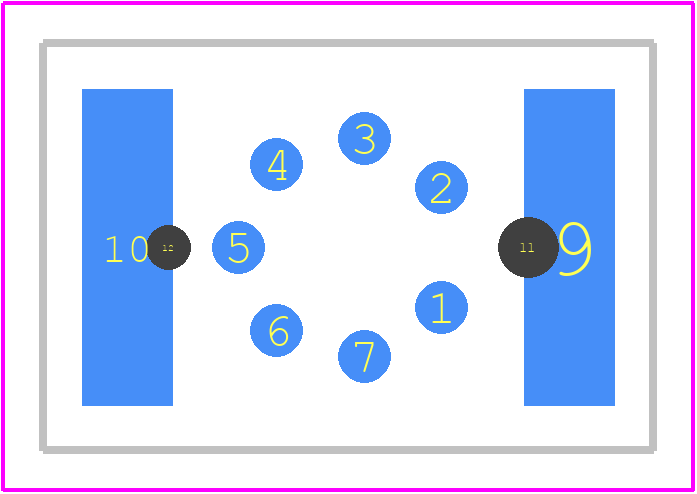

2422420000 - Weidmüller PCB footprint - Other - Other - 2422420000
click to zoom
3D Models
2422420000 - Weidmüller - 3D model - Other - 2422420000
click to zoom

2422420000 Details

  • Manufacturer Part Number:

    2422420000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2422420000 Overview

Use the download button to access the 2422420000 schematic symbol, PCB footprint, and 3D model.
