2439970000 - Weidmüller

Description: PCB connector (board connection), 320 V, 6 A, Pitch in mm: 2.50, Number of poles: 8, THT solder connection, Box

Download 2439970000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

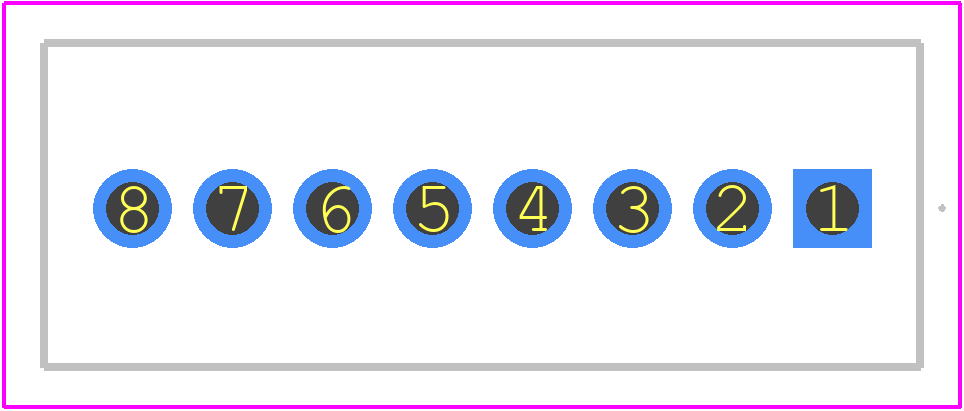

2439970000 - Weidmüller PCB footprint - Other - Other - 2439970000-2
click to zoom
3D Models
2439970000 - Weidmüller  - 3D model - Other - 2439970000-2
click to zoom

2439970000 Details

  • Manufacturer Part Number:

    2439970000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

2439970000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 2439970000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 2439970000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, allowing for seamless integration into industrial networks.
  • The maximum cable length supported by the 2439970000 depends on the specific application and cable type, but generally, it can support cable lengths up to 100 meters.
  • The 2439970000 has built-in surge protection, which provides a high level of protection against electrical surges and spikes, eliminating the need for external protection in most cases.
  • The 2439970000 is designed to meet the requirements for use in hazardous locations, including explosion-proof areas, but it's essential to consult the manufacturer's documentation and relevant industry standards to ensure compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2439970000 Overview

Use the download button to access the 2439970000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24399, or try a keyword search, such as Terminals and Terminal Blocks
