2439990000 - Weidmüller

Description: PCB connector (board connection), 320 V, 6 A, Pitch in mm: 2.50, Number of poles: 10, THT solder connection, Box

Download 2439990000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2439990000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

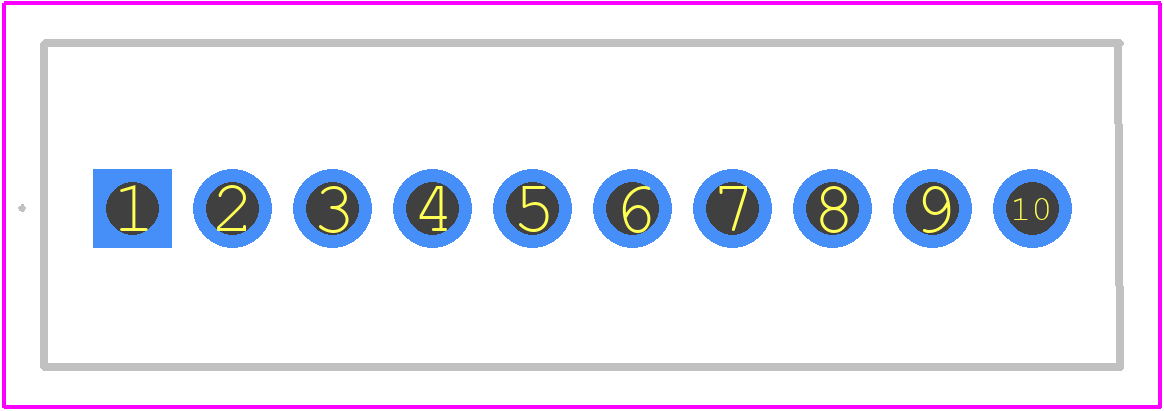

2439990000 - Weidmüller PCB footprint - Other - Other - 2439990000-1
click to zoom
3D Models
2439990000 - Weidmüller - 3D model - Other - 2439990000-1
click to zoom

2439990000 Details

  • Manufacturer Part Number:

    2439990000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

2439990000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 2439990000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 2439990000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The recommended torque for the screw terminals on the 2439990000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 2439990000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for use in general industrial applications only.
  • The 2439990000 has an IP20 rating, which means it provides protection against solid objects larger than 12.5 mm and does not provide protection against water or moisture.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2439990000 Overview

Use the download button to access the 2439990000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24399, or try a keyword search, such as Terminals and Terminal Blocks
