The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm, but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
While the 244-21300-15 connector is designed to be robust, it's essential to evaluate its performance in your specific high-vibration environment. You may need to consider additional mounting or strain relief measures to ensure reliable operation.
The 244-21300-15 connector has a IP20 rating, which means it's designed for indoor use. If you need to use it outdoors or in harsh environments, you may need to consider additional protection measures, such as conformal coating or sealing, or choose a different connector with a higher IP rating.
The datasheet may not specify the exact operating temperature range, but typically, ept Connectors' products are designed to operate within a range of -40°C to 105°C. However, it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
The 244-21300-15 connector is designed to work with specific wire gauges and types. While it may be possible to use it with other wire gauges or types, it's essential to ensure compatibility and consult the manufacturer's application notes or contact their technical support to avoid any potential issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
244-21300-15 Overview

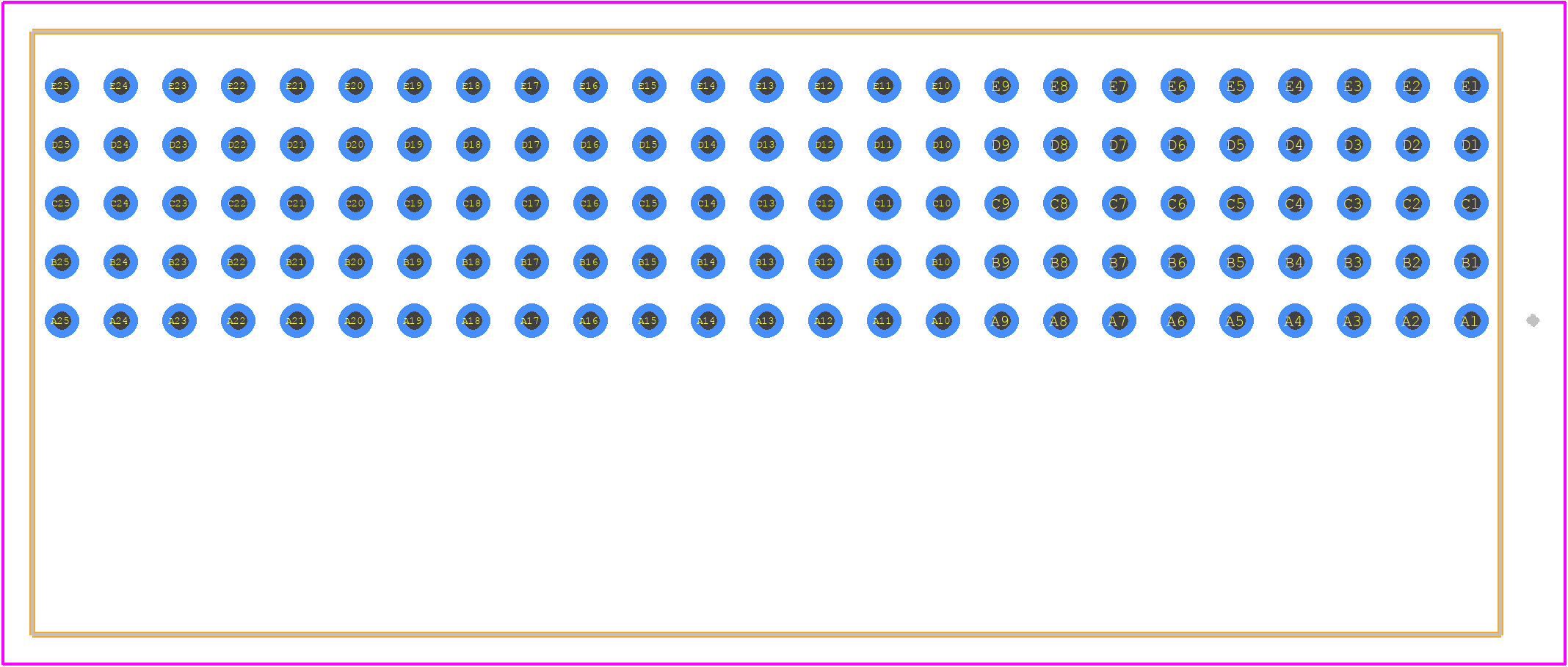

Use the download button to access the 244-21300-15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 244-2,
or try a keyword search, such as Headers and Edge Type Connectors
