2472090000 - Weidmüller

Description: PCB terminal, 1000 V, 41 A, Pitch in mm: 7.50, 6 mm², Number of poles: 3, PUSH IN with lever, THT solder connection, 90°, Box

Download 2472090000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2472090000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

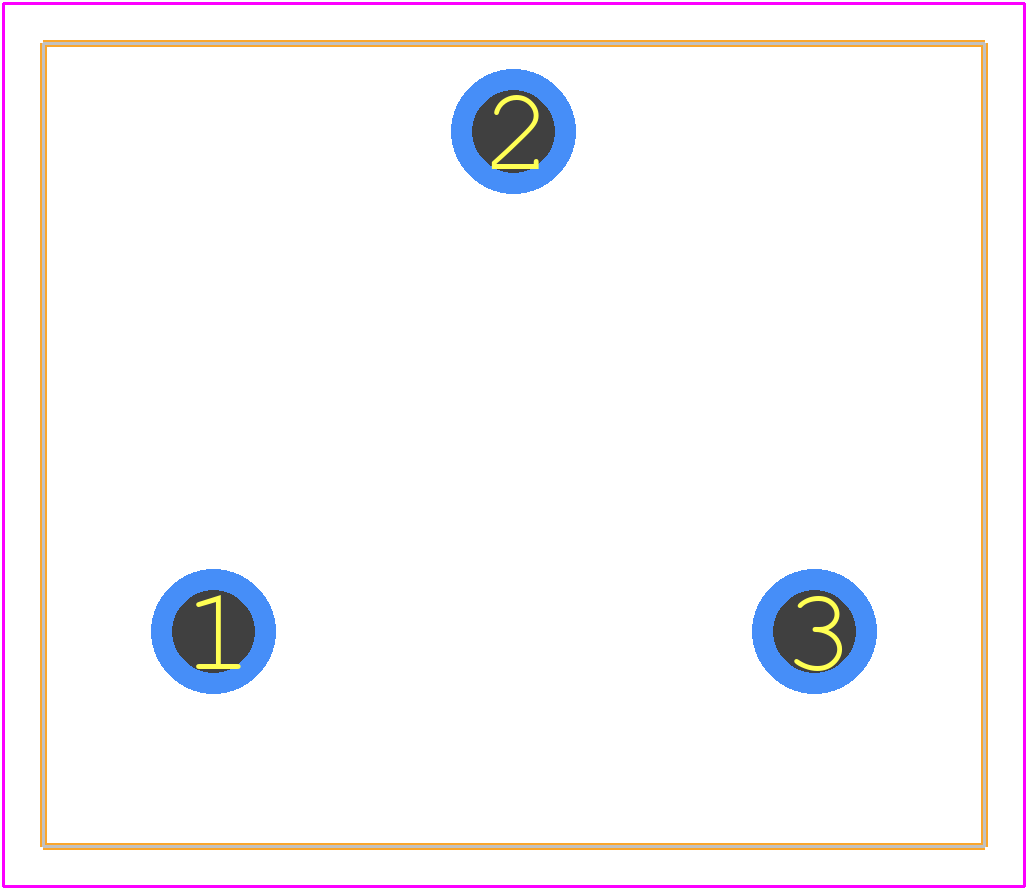

2472090000 - Weidmüller PCB footprint - Other - Other - 2472090000-2
click to zoom
3D Models
2472090000 - Weidmüller - 3D model - Other - 2472090000-2
click to zoom

2472090000 Details

  • Manufacturer Part Number:

    2472090000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2472090000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 2472090000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 2472090000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The recommended torque for the screw terminals on the 2472090000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 2472090000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for use in general industrial applications only.
  • The typical lead time for delivery of the 2472090000 varies depending on the region and availability. It is recommended to check with Weidmüller or an authorized distributor for the most up-to-date lead time information.
