2472336-1 - TE Connectivity

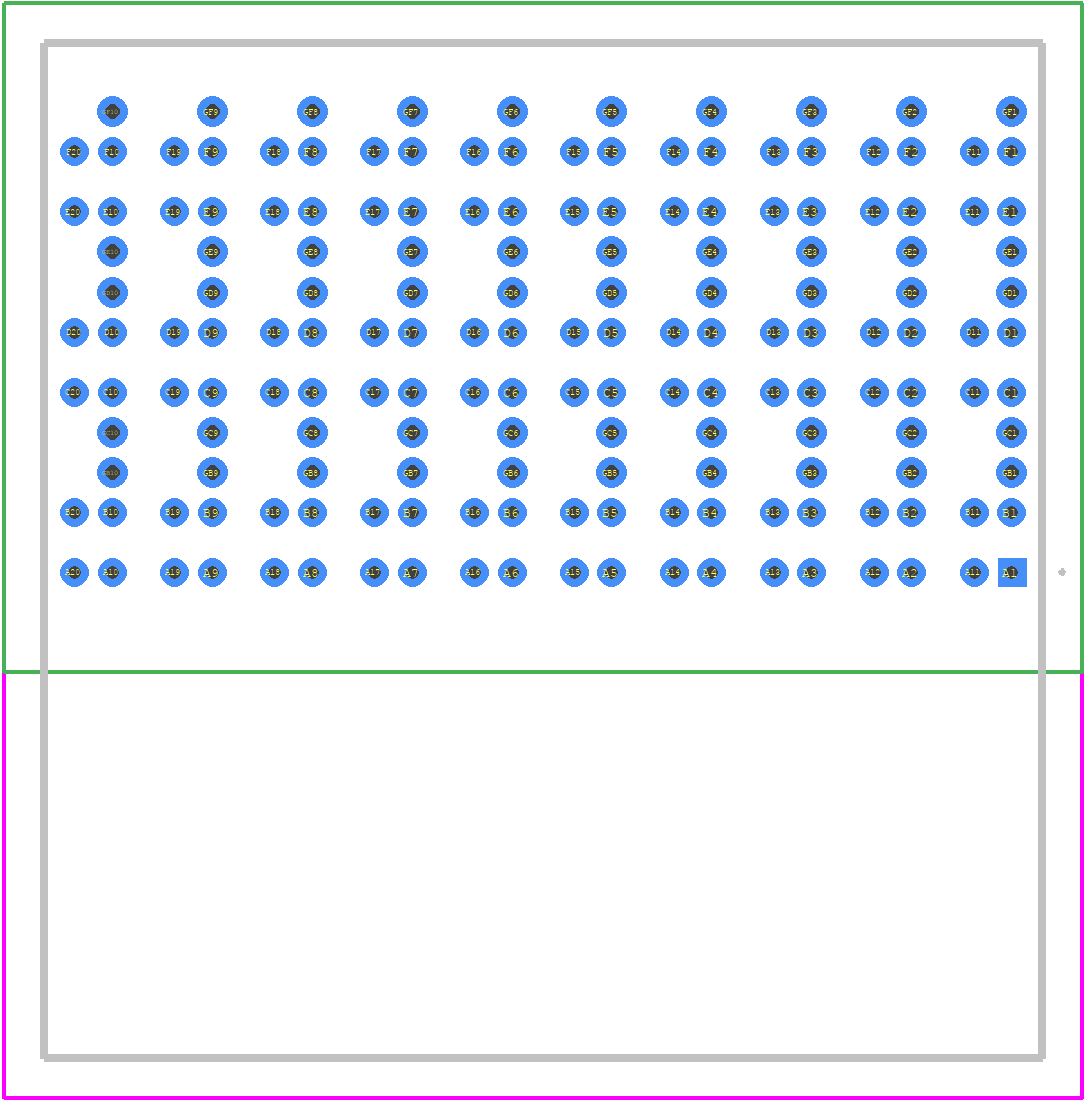

2472336-1 Details

• Manufacturer Part Number:

  2472336-1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Body Breadth:

  0.663 inch

• Body Depth:

  0.998 inch

• Body Length:

  0.982 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  70 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  650VAC V

• Durability:

  250 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.75 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• Mating Contact Pitch:

  0.098 inch

• Mating Contact Row Spacing:

  0.059 inch

• Mating Information:

  2472335-1

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  11

• Number of Rows Loaded:

  6

• Operating Temperature-Max:

  105 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.05 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Length:

  0.051 inch

• Terminal Pitch:

  2.5 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  120

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.075 N
