2474520-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

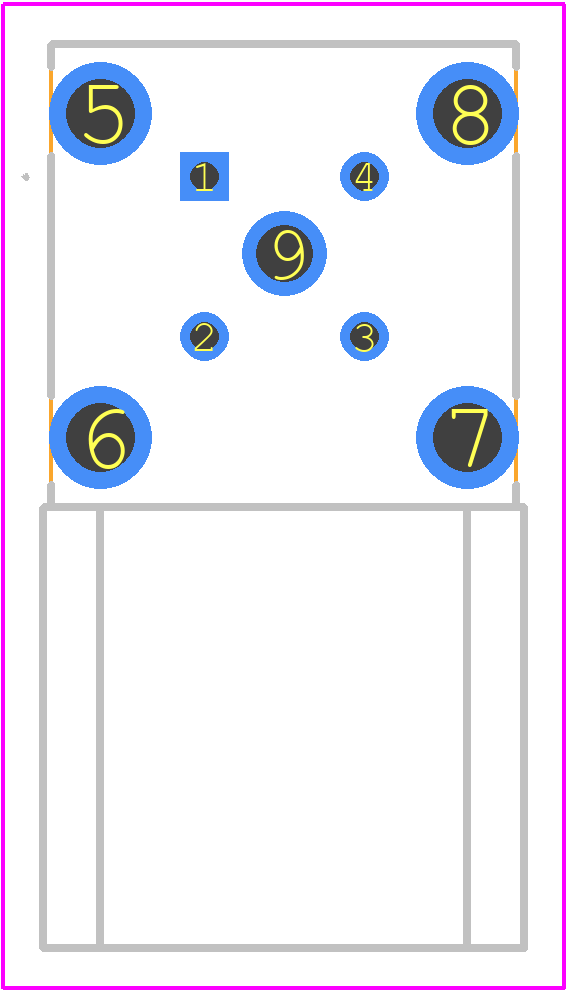

PCB Footprints

2474520-1 - TE Connectivity PCB footprint - Other - Other - 2474520-1-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2474520-1
Part Number 2474520-1
Manufacturer TE Connectivity
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - 2474520-1-3
Released Date Dec 20, 2024
Last Modified Date Feb 24, 2025 9:49 AM UTC
Pinout / Pin List Click Here (Member Only)

2474520-1 Details

Manufacturer Part Number:
2474520-1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
TE Connectivity
Connector Type:
CIRCULAR CONNECTOR

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

2474520-1 Overview

Use the download button to access the 2474520-1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 24745, or try a keyword search, such as Other Circular Connectors
