2474R-39L - API Delevan

Description: FIXED IND 1.5MH 340MA 3 OHM TH

Download 2474R-39L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2474R-39L - API Delevan - PCB symbol
click to zoom
PCB Footprints

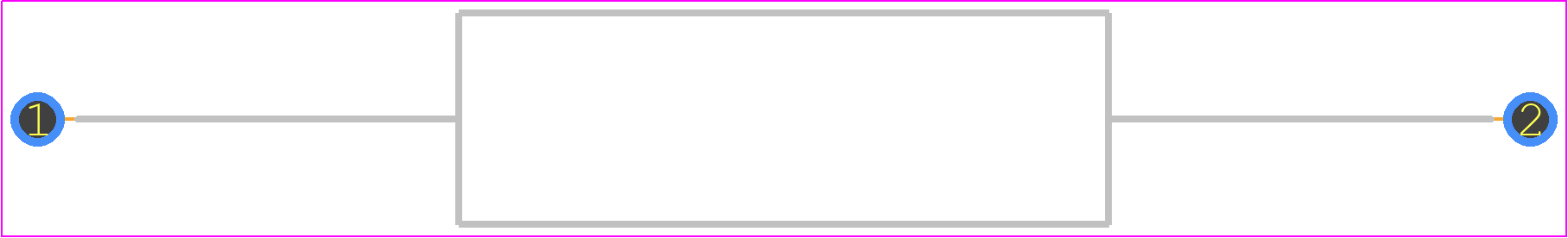

2474R-39L - API Delevan PCB footprint - Inductors, Axial Diameter Horizontal Mounting - Inductors, Axial Diameter Horizontal Mounting - 2474R-16L
click to zoom
3D Models
2474R-39L - API Delevan - 3D model - Inductors, Axial Diameter Horizontal Mounting - 2474R-16L
click to zoom

2474R-39L Details

  • Manufacturer Part Number:

    2474R-39L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    API Delevan

  • YTEOL:

    6

  • Construction:

    Tubular

  • Core Material:

    FERRITE

  • DC Resistance:

    3 Ω

  • Inductance-Nom (L):

    1500 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Diameter:

    0.813 mm

  • Lead Length:

    36.58 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    6.1 mm

  • Package Length:

    18.8 mm

  • Package Style:

    Axial

  • Packing Method:

    TR, 14 INCH

  • Rated Current-Max:

    0.34 A

  • Shape/Size Description:

    TUBULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Copper (Sn99.3Cu0.7)

  • Terminal Placement:

    AXIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    15%

2474R-39L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 2474R-39L is a rectangular pad with a size of 4.5mm x 3.5mm, with a non-solder mask defined (NSMD) pad shape.
  • The 2474R-39L has a maximum operating temperature of 125°C. Ensure good airflow around the component, and consider using a thermal interface material (TIM) to improve heat dissipation.
  • The 2474R-39L's current rating is 3.9A for high-frequency applications (above 1MHz). For lower frequencies, the current rating is 4.5A.
  • Yes, the 2474R-39L is designed to withstand vibrations up to 20G. However, ensure proper mounting and soldering to prevent mechanical stress on the component.
  • Apply a conformal coating to protect the component from moisture. Ensure the coating is compatible with the component's materials and follows the manufacturer's recommendations.
