2485396-1 - TE Connectivity

Description: HDMI Connector Receptacle, Standard Profile, 1 Port, Top, Right Angle, Surface Mount, Cable-to-Board, 19 Position, .5 mm [.019 in] Centerline

Download 2485396-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

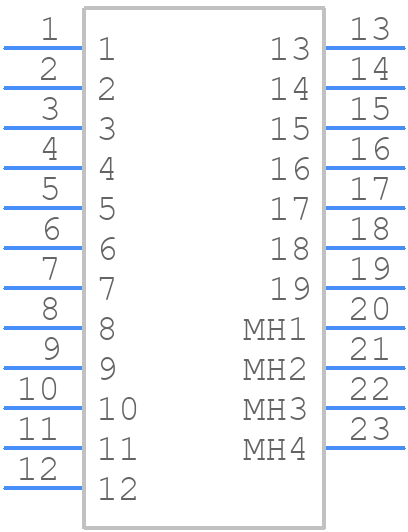

2485396-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

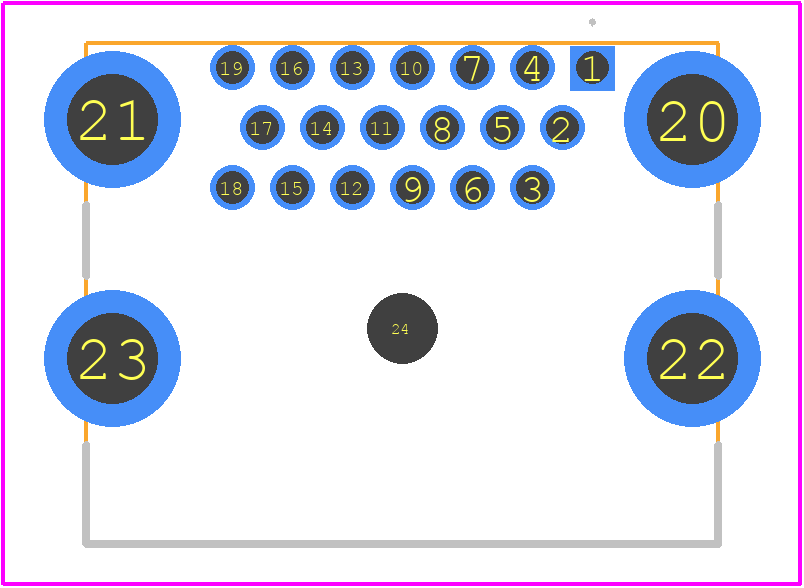

2485396-1 - TE Connectivity PCB footprint - Other - Other - 2485396-1-1
click to zoom
3D Models
2485396-1 - TE Connectivity - 3D model - Other - 2485396-1-1
click to zoom

2485396-1 Details

  • Manufacturer Part Number:

    2485396-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    HDMI CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2485396-1 Overview

Use the download button to access the 2485396-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24853, or try a keyword search, such as Telecom and Datacom Connectors
