2489011-1 footprint, schematic symbol and 3D model by TE Connectivity

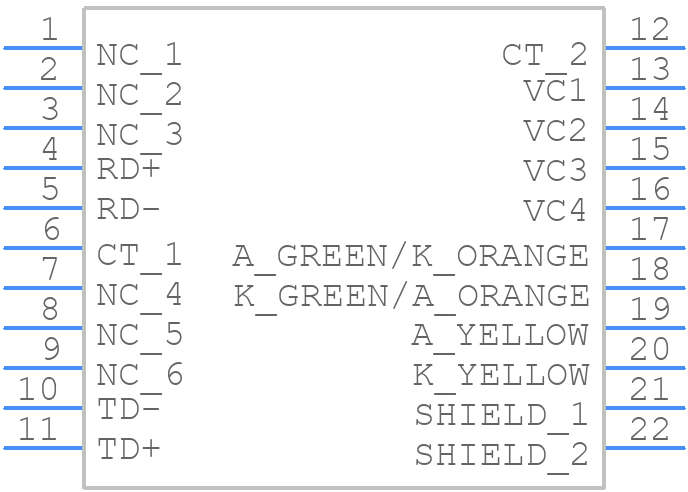

Symbol

click to zoom

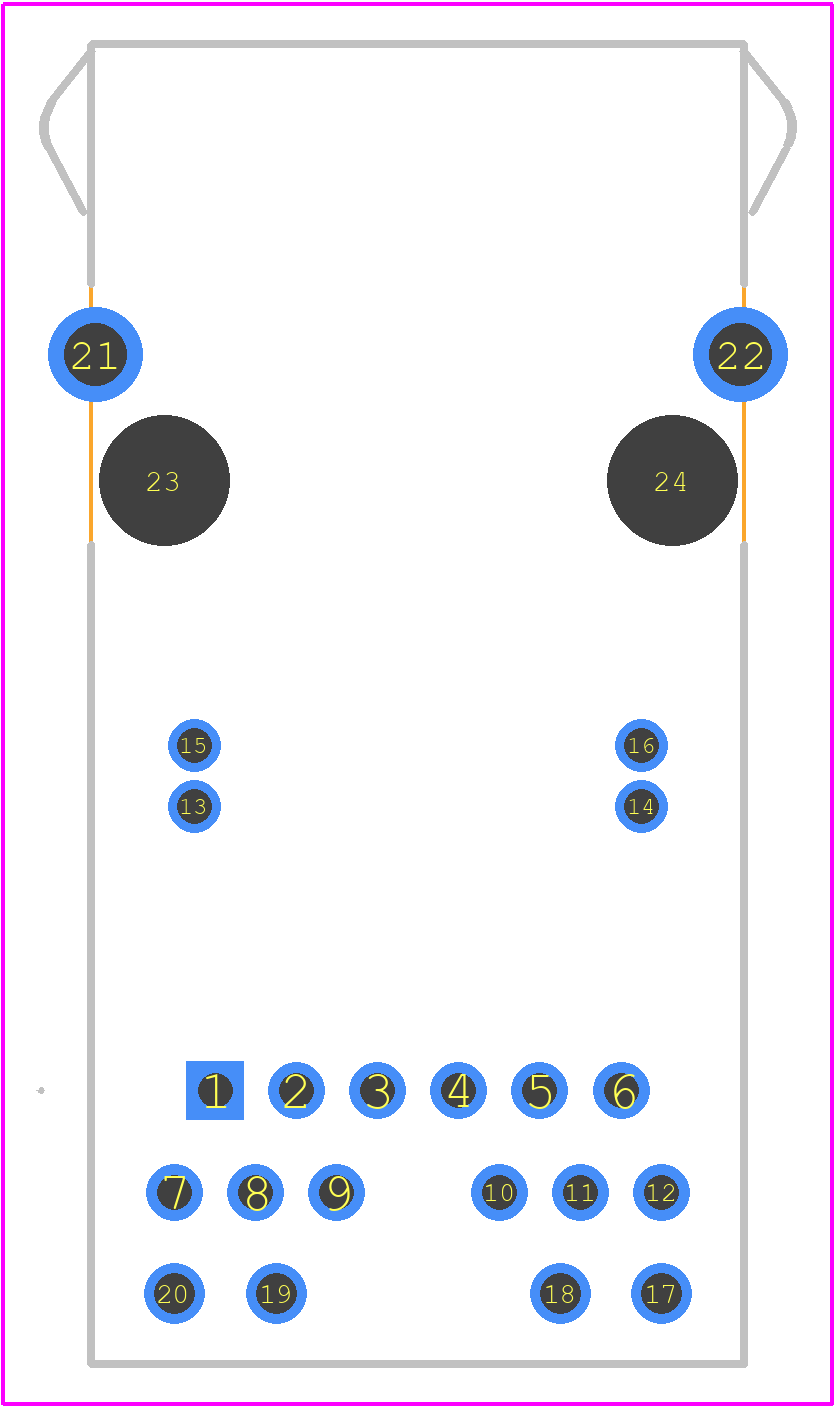

PCB Footprints

2489011-1 - TE Connectivity PCB footprint - Other - Other - 2489011-1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2489011-1
Part Number 2489011-1
Manufacturer TE Connectivity
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - 2489011-1-1
Released Date Jun 3, 2025
Last Modified Date Dec 4, 2025 12:27 AM UTC
Pinout / Pin List Click Here (Member Only)

2489011-1 Details

Manufacturer Part Number:
2489011-1
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
Connector Type:
RJ CONNECTOR

Trust Checks

Community Provided

System Verified

Community Approved

2489011-1 Overview

Use the download button to access the 2489011-1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 24890, or try a keyword search, such as Telecom and Datacom Connectors
